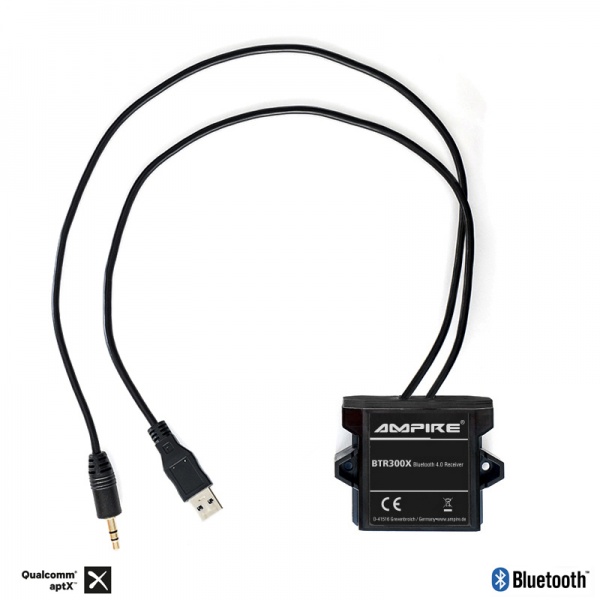

Ampire BTR300-HD

Verbeterde versie van de BTR300X

FEATURES
– Marine certified
– with auto turn on function
– certified Bluetooth 4.0 CSR8645
– 3.5mm jack output with 1.0V Signal output
– QDL licensed
– SSID Name: BTR300X
– aptX Audio-Codec von Qualcomm®
– Bitrate: up to 345 kBit/s.

CONNECTIONS
– USB Input (5 VDC) (300mm)
– 3.5mm jack Output (300mm)

BLUETOOTH LICENSE
– Declaration ID D025151
– Referenced Qualified Design ID 56386
– Listing Date 08 December 2014

PAIRING
– Ensure that your streaming device has Bluetooth enabled.
– Turn the ignition (ACC) on.
– The LED (6) starts blinking (pairing mode).
– Select BTR300X in your devices Bluetooth setup menu.
– When successfully connected, the LED on the BTR300X will stop blinking and remain lit. A single beep will be heard through the connected sound system.

ATTENTION
– Multiple devices can be paired to the BTR300X, but only one device can connect at one time.
– The BTR300 will remember the last device which was connected to it and reconnect with it automatically. If that device is not active, then other paired devices can connect manually, or new devices can be paired.
– When a connected device is out of range for more than one minute, the BTR300X will automatically disconnect it and returns to pairing mode [the LED (6) starts blinking].

OPERATING
– Once connected, audio is controlled from the streaming device. This includes volume and media selection.
– The BTR300X can be installed out of sight, as it has no user controls that needs to be accessed.

SPECIFICATIONS
– Power: 5V DC (USB)
– Current consumption: 40mA max.
– Bluetooth 4.0
– Frequency range: 20Hz-20kHz
– Output level: 1V RMS
