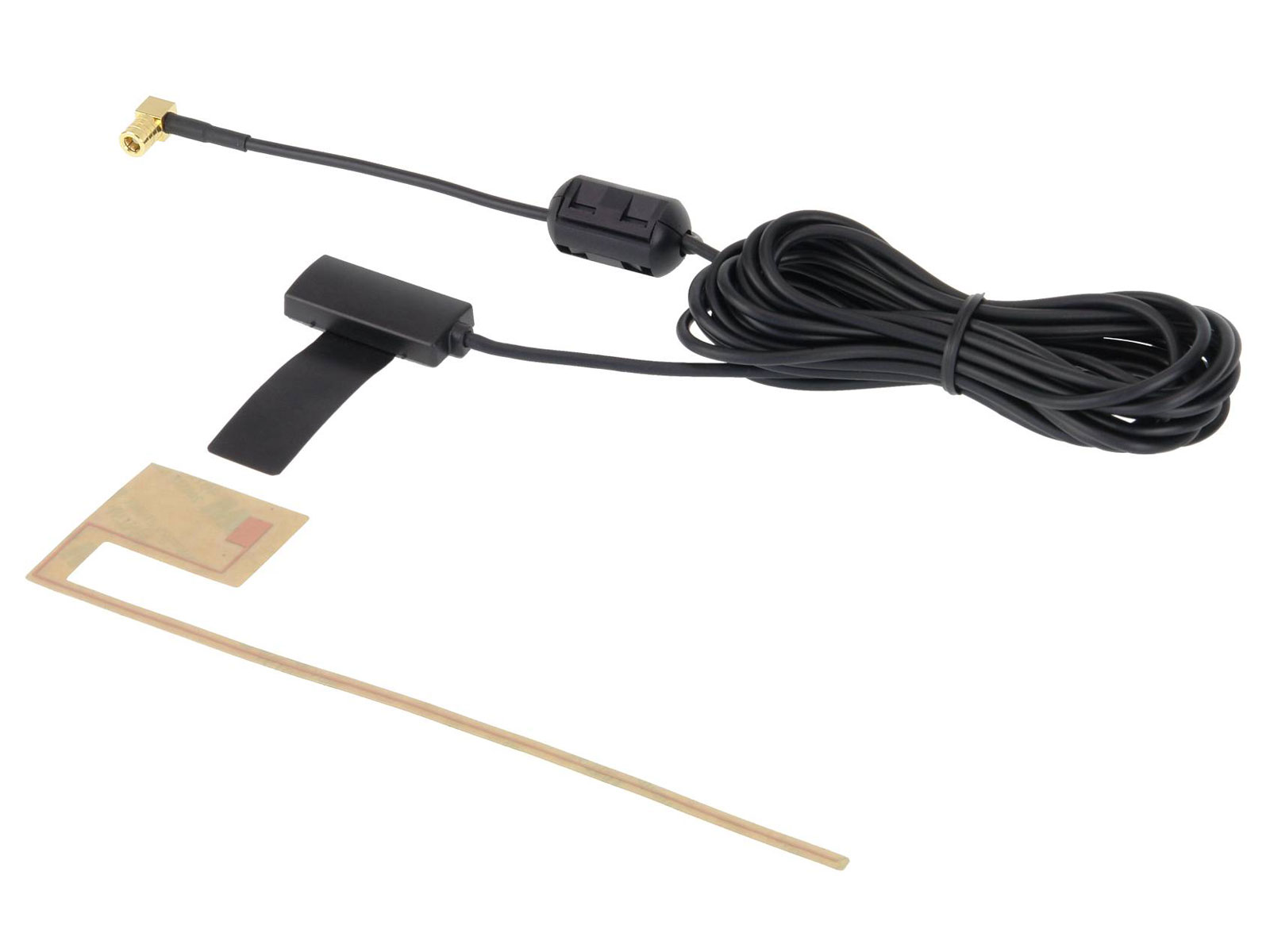

Alpine KAE-242DA – Active DAB Screen Antenne

This product is an amplified screen antenna suitable for Alpine DAB products.

The KAE-242DA is an active DAB/DAB+/DMB film antenna for automotive use.

Specifications

• Structure: Foil type, self-adhesive, asymmetric
• Frequency Ranges band-III/L:  170-240MHz / 1452-1495MHz
• Supply:  5 – 12V (30mA), receiver (phantom) supplied
• Directivity: Omni directive
• Impedance: 50 Ohms
• Connection: 3.5m low-loss cable with angled SMB(f) plug
• Color: Black / transparent
• Dimensions: 40 x 170mm
