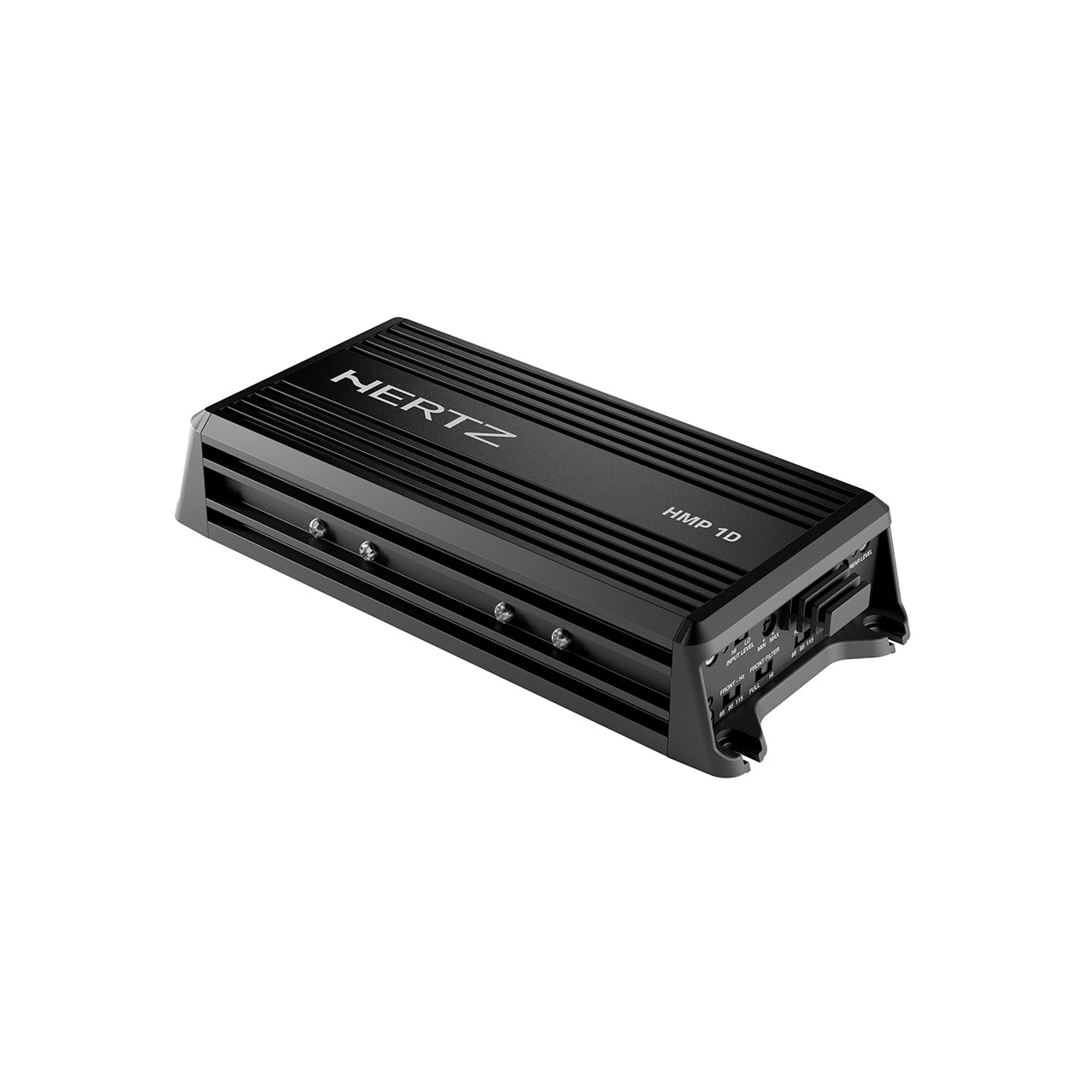

HMP 1D
MARINE & POWERSPORTS MONO AMPLIFIER
Thanks to the ultra-compact cast-aluminium chassisĀ (IP64 rated), theĀ HMP 1DĀ amplifiers is nature-proof, beingĀ the ideal choice for UTV/ATV/motorcycle installations. ItĀ features an incredible power/size ratio andĀ an easy setup thanks to the integrated crossover filter.Ā The Front End section features a complete and bypassableĀ crossover system, providing full system designĀ flexibility with or without external processors, offering theĀ user endless connection possibilities with any source.Ā Inputs feature a special balanced circuitry, ensuring highĀ rejection against electro-magnetic interferences, forĀ noise-free results.Ā The level of HMP 1 D amplifiers can be remote controlledĀ with the included HRC BM (Hertz Remote Control BassĀ Management). Connected to the Remote Control plug,Ā this provides extremely precise volume level from theĀ comfort of your seat.
Data table
Channel mode | 1 |
Output Power (RMS) @ 14.4 VDC |
180 W x 1 (4 ā¦) 300 W x 1 (2 ā¦) |
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic |
Yes – 65-85-115 Hz @ 12 dB/Oct. – Off-22-32 Hz @ 12 dB/Oct. |
Distortion – THD (100Hz @ 4Ī©) |
0.1 % |
S/N Ratio (A weighted @ 1V) |
105 dB |
Damping factor (100Hz @ 4Ī©) |
300 |
Size W x D x H mm (in.) |
223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71 |
Technologies
- IP64 CERTIFICATION
- WATER JET TESTEDThe protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
- CORROSION PROTECTIONElectronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
- SALT FOG TESTEDTo satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
