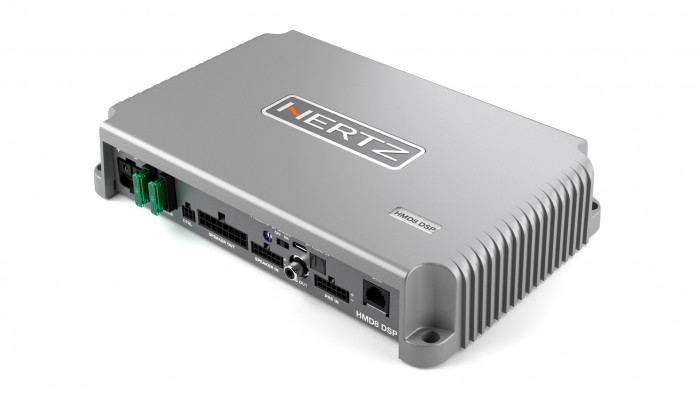

Hertz Marine HMD8 DSP – 8CH MARINE AMPLIFIER WITH DSP 8x150W
€1.199,00
The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system.
HMD8 DSP
The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ī©) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. “Power for the Wavesā design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.
| POWER SUPPLY | |
| Operating power supply voltage | 11 Ć· 15 VDC / 2 x 30A |
| Power supply | 6.5V Ć· 17V |
| Idling current | 1.6 A |
| Switched off | 1.7mA |
| Consumption @ 14.4 VDC, 2Ī©, Max Musical Power | 55 A |
| Remote IN voltage | 6 Ć· 15 VDC (1 mA) |
| Remote OUT voltage | 4 Ć· 15 VDC (150 mA) |
| AMPLIFIER STAGE | |
| Distortion – THD @ 1 kHz, 4Ī©, 70% Rated Power | 0.06% |
| Damping factor @ 1 kHz, 4Ī©, 2 VRMS | > 110 |
| Bandwidth @ -1.5 dB | 10Hz Ć· 22kHz |
| S/N ratio (A weighted @ 1 V Input) Master Input | 100 dBA |
| S/N ratio (A weighted @ 1 V Input) Optical Input | 105 dBA |
| Input sensitivity Pre-In | 0.6 Ć· 6 VRMS |
| Input sensitivity Speaker-In | 2.2 Ć· 22 VRMS |
| Minimum load impedance | 8Ch: 2Ī© |
| 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ī© | |
| OUTPUT POWER (RMS) @28.8 VDC, 1% THD: | |
| 8Ch @ 4Ī© | 85 W x 8 |
| 8Ch @ 2Ī© | 130 W x 8 |
| 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ī© | 260 W x 4 |
| Filter type | Full / High pass / Low pass / Band pass |
| Filter model and slope | Butterworth (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct) Linkwitz-Riley (12, 24, 36, 48, 60 dB/oct) Bessel (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct) Chebyshev (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct) QLP quasi-linear phase (6, 12 dB/oct) |
| Crossover frequency | 20 Hz ā 20000 Hz integer values |
| Phase control | 0 Ā° – 180Ā°, all pass equalizer poles |
| Output equalizer | Graphic and Parametric modes n. 10 parametric poles (Peaking, High Shelf, Low Shelf, Notch, All pass) Ā±12 dB gain, variable Q (0.5 ā 16.0) n. 10 graphic poles |
| Time alignment distance | 0 – 510 cm (0 ā 200.8 inches) |
| Time alignment delay | 0 – 15 ms |
| Time alignment step | 1 cm |
| Time alignment fine set step | 1 sample |
| Memories | n. 2 memories n. 3 parametric poles for each memory (Peaking, High Shelf, Low Shelf) Ā±12 dB gain, variable Q (0.5 ā 16.0) |
| Preset | Rotary switch for 7 installation presets |
| Max size W x H x D (mm/inch) | 238 x 49,5 x 155 / 9.37 x 1.95 x 6.1 |
| Weight (kg/lbs) | 1,98 / 4.36 |
| Merk | Hertz Marine |
|---|
