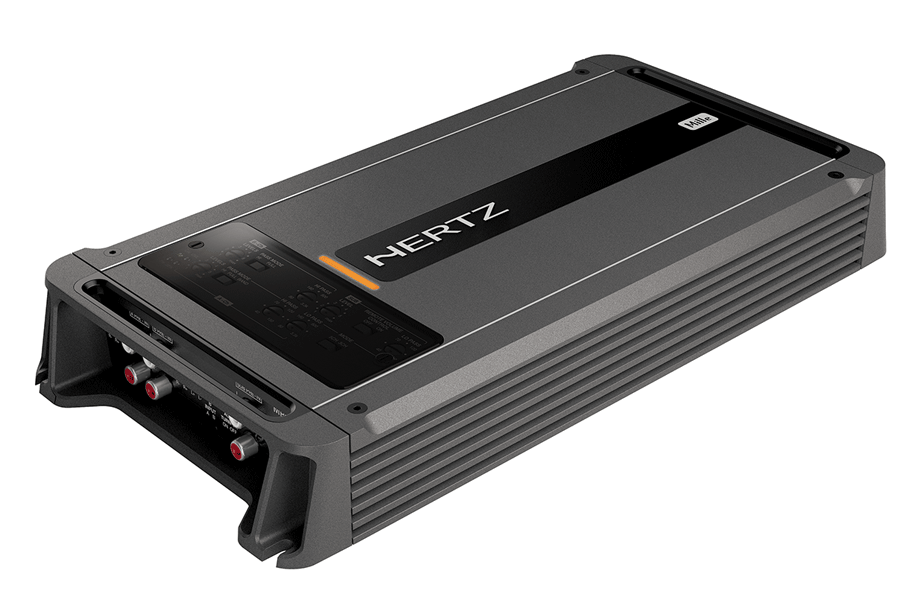

Hertz Mille Power D-CLASS 5 CH. AMPLIFIER 4x100W+1x550W
ML Power 5
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers.Ā The new ADC (ADVANCED D-CLASSĀ TECHNOLOGY)Ā ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineeredĀ with double technology,Ā extrusion and aluminium die-casting,Ā enables the Mille Power amplifiers to work constantly at full powerĀ without ever overheating, further maximizing thermal efficiency.Ā The ultra-versatileĀ Hertzaudio car amplifier ML Power 5 (100 W x 4 +Ā 550 W 2 Ī©)Ā provides the ability to drive a Mille system includingĀ the subwoofer.Ā The HRC BM (Hertz Remote Control BassĀ Management), low frequencies level remote control, is optional.
Data table
Channel mode | 5 – 3 |
Output Power (RMS) @ 14.4 VDC |
5 Ch 70 W x 4 + 380 W x 1 (4Ī©) 5 Ch 100 W x 4 + 550 W x 1 (2Ī©) 3 Ch 200 W x 2 (4Ī©) + 380 W x 1 (4Ī©) 3 Ch 200 W x 2 (4Ī©) + 550 W x 1 (2Ī©) |
Filters
Hi-Pass |
A Ch: 40 Ć· 150 Hz @ 12 dB/Oct. – B Ch: 80 Ć· 3.3k Hz @ 12 dB/Oct. |
Distortion – THD (100Hz @ 4Ī©) |
0.08 % |
S/N Ratio (A weighted @ 1V) |
100 dB A & B Ch – 106 dB C Ch |
Damping factor (100Hz @ 4Ī©) |
50 A & B Ch – 90 C Ch |
Size W x D x H mm (in.) |
170 x 349 x 46.70 – (6.69′ x 13.74′ x 1.84′) |
Technologies
-
ADVANCED D-CLASS TECHNOLOGY
Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.
-
LEDS STATUS DISPLAY
It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.
-
HDP IN & ART(TM)

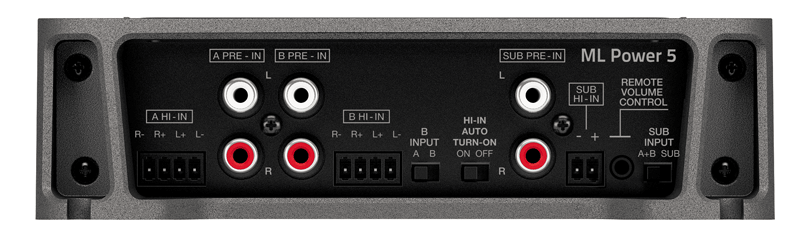

The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ARTā¢ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant ābumpsā.
-
ADVANCED HEATSINK
The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.
