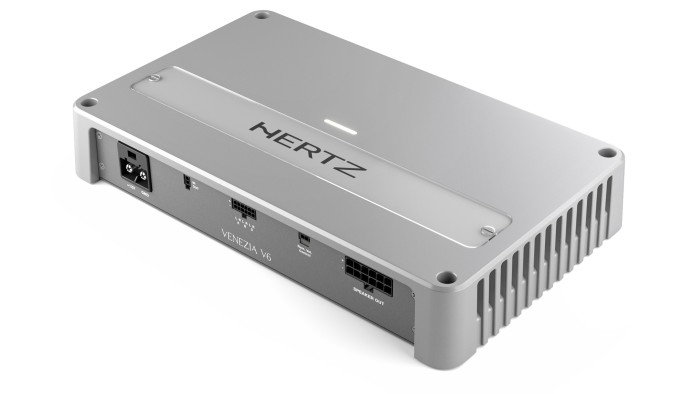

Hertz Marine VENEZIA V6 – MARINE 6 CHANNEL AMPLIFIER 6x270W
€969,00
Venezia V6 is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation – enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability.
Hertz Marine VENEZIA V6 – MARINE 6 CHANNEL AMPLIFIER 6x270W
Ch: 6 – 5 – 4 – 3 |
Venezia V6 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 is fully protected by short-circuit, overload, and thermal protections – with auto-resetting.
| Channels | 6 – 5 – 4 – 3 |
| POWER SUPPLY | |
| Power supply voltage | 9 ÷ 16 VDC |
| ldling current (power ON/OFF): | 1.8 A / 0.04 mA |
| Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 75 A |
| Remote In: | 7 ÷ 15 VDC – 1 mA |
| AMPLIFIER STAGE | |
| Distorsion – THD (100Hz @ 4Ω): | <0,06% |
| Bandwidth: | 10 ÷ 42 kHz |
| S/N Ratlo (A welghted @ 1 V): | 100 dB |
| Damping factor (100Hz @ 4Ω) | 130 |
| Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
| Pre-ln impedance: | 10 kΩ |
| Load impedance (MIN) @6Ch: @5Ch: @4Ch: @3Ch: |
2Ω 2Ω + 2Ω + 2Ω +2Ω + 4Ω 2Ω + 2Ω +4Ω + 4Ω 4Ω |
| Adjustable Crossovers | yes |
| OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% | |
| 6Ch | 160 W x 6 (4Ω) |
| 6Ch | 290 W x 6 (2Ω) |
| 5Ch | 160 x 4 (4Ω) + 580 x 1 (4Ω) |
| 5Ch | 290 x 4 (2Ω) + 580 x 1 (4Ω) |
| 4Ch | 160 x 2 (4Ω) + 580 x 2 (4Ω) |
| 4Ch | 290 x 2 (2Ω) + 580 x 2 (4Ω) |
| 3Ch | 580 x 3 (4Ω) |
| Total Power | 1740 W |
| lnputs: | A Ch. Pre in B Ch. Pre in C Ch. Pre in |
| Pre Out: | No |
| Ch. A filters: | |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass: | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. B filters: | |
| MONO IN (on/off) | Yes |
| By-pass | Yes |
| Hi-pass: | 50 ÷ 500 Hz @ 12 dB/Oct |
| Band-pass: | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
| Ch. C filters: | |
| MONO IN (on-off) | Yes |
| By-pass | Yes |
| Hi-pass: | 50 ÷ 500 Hz @ 12 dB/Oct |
| Lo-pass: | 50 ÷ 500 Hz @ 12 dB/Oct |
| mm | in | |
| A | 330 | 13 |
| B | 300 | 11.18 |
| C | 200 | 7.87 |
| D | 170 | 6.7 |
| E | 54 | 2.12 |
| kg | lb | |
| Weight: | 3.72 | 8.2 |
| Merk | Hertz Marine |
|---|
