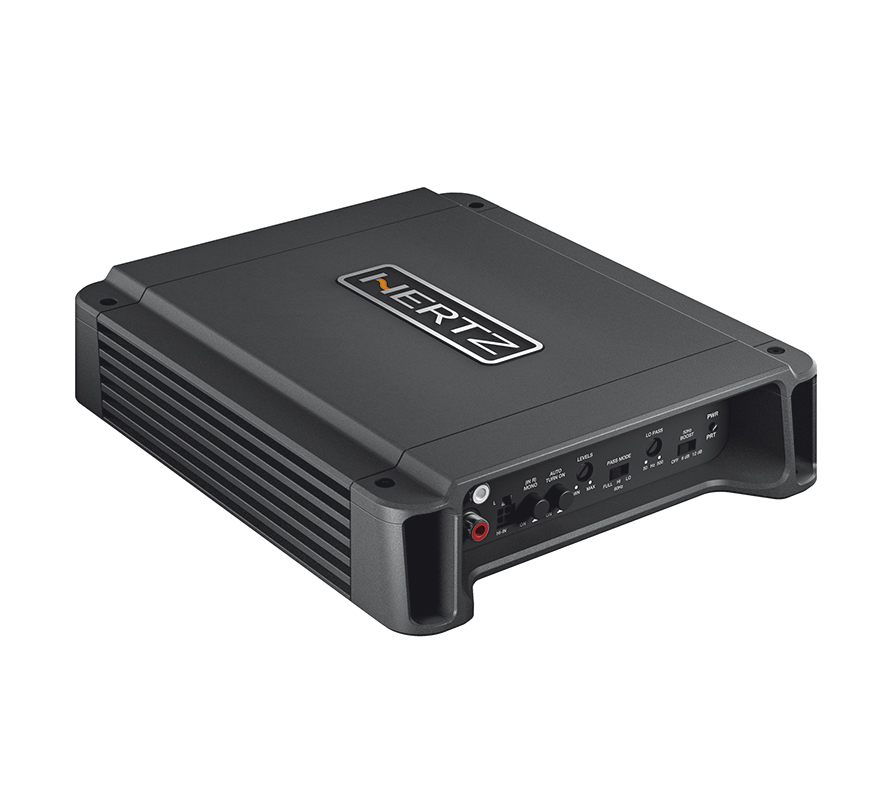

Hertz Compact Power STEREO AMPLIFIER HCP 2
€169,00
HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system.
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
Hertz Compact Power STEREO AMPLIFIER 2x100W
HCP 2
HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
With HCP 2 high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 Ć· 12 dB) to enhance low frequencies.
Data table
| Channel mode | 2 – 1 |
| Output Power (RMS) @ 14.4 VDC |
2 Ch: 65 W x 2 (4ā¦) 2 Ch: 100 W x 2 (2ā¦) 1 Ch: 200 W x 1 (4ā¦) |
| Filters Bypass Hi-Pass Lo-Pass Band-Pass |
Yes 80 Hz @ 12 dB/Oct. 50 – |
| Distortion – THD (100Hz @ 4Ī©) |
0.01% |
| S/N Ratio (A weighted @ 1V) |
103 dB |
| Damping factor (100Hz @ 4Ī©) |
200 |
| Size W x D x H mm (in.) |
215 x 190 x 50 (8.46 x 7.48 x 1.97) |
Technologies
-
REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY
HEATSINK WITH HIGH CONVECTION CAPABILITY The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.
-
COMPLETED FILTER SECTION
Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.
-
HCP ELECTRONICS
Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105
-
ART
Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.
