FEATURES

---

Tuner

• Memory Pre-sets (FM: 24 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

Alpine I902D-G6 DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Pre-set: 18 Pre-set Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Wide Band Speech Technology
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Pre-set Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
• Connection: KCU-461iV / KCU-471i Required (Sold separately)
• Music & Video Playback Compatible with KCU-461iV only
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

Connectivity

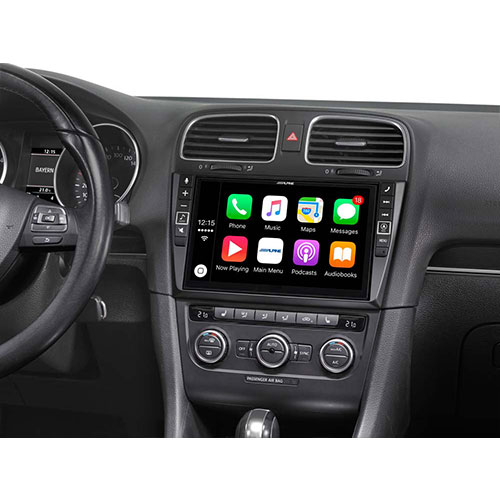

• Works with Apple CarPlay (requires CarPlay enabled iPhone)
• Works with Android Auto (Requires Android Auto enabled smartphone)

Alpine I902D-G6 USB Media Connection

• USB Connection: USB Extension Cable Included
• Music Playback: FLAC/MP3/WMA/AAC compatible
• Video Playback: MP4 compatible
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

Sound Tuning

• Bass Engine SQ
• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 4V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band Parametric Equalizer front/rear)
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander HD
• Application Volume Level Setting
• Sound Setting Data Download
• Easy, Step-by-Step Sound Customization
• Alpine TuneIt App ready

General

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 9′′ Capacitive WVGA High Resolution Display
• White LED Backlighting System
• 50/50 Split Screen: Left / Right Position Changeable
• Control Type: Touch, Drag, Flick
• My Favourites Function
• Automatic Setting Change for 2 Users
• High Grade Audiophile Design
• 3 PreOuts (4V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
• AUX-In: 1 A/V AUX Input (3.5mm micro jack)

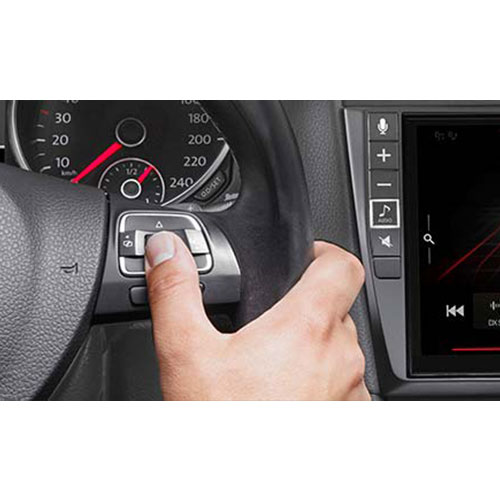

• Steering Wheel Remote Control Function
• OEM Sub-display Function
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras / compatible with original camera

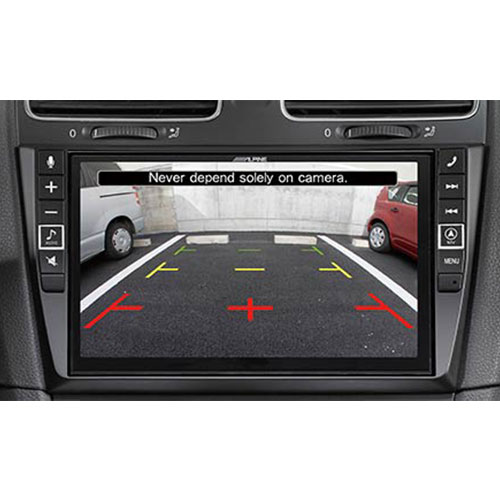

• Camera Guide Line Adjustment
• Rear-view Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Original Golf 6 hands-free Microphone Connection
• Power Antenna Lead
• Remote Turn-On

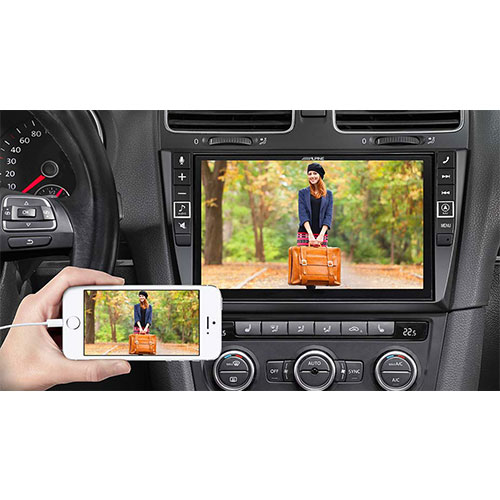

• HDMI Input (Alpine Special HDMI connector required)
• Engine Start-Stop unaffected
• CAN Connection Interface Included
• Ready for optional DVD Player DVE-5300

SPECIFICATIONS

---

Screen

• Screen Size: 9 inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 – 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 – 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 – 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• Flac Decoding
• USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• Dynamic Range(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V3.0+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• High Pass Filter (Gain): -12 to 0 dB
• Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• Low Pass Filter (Gain): -12 to 0 dB
• Time Correction: 0.0 – 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 – 100 Hz
• Parametric Equalizer (Band 2): 63 – 315 Hz
• Parametric Equalizer (Band 3): 125 – 500 Hz
• Parametric Equalizer (Band 4): 250 – 1k Hz
• Parametric Equalizer (Band 5): 500 – 2k Hz
• Parametric Equalizer (Band 6): 1k – 4k Hz
• Parametric Equalizer (Band 7): 2k – 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k – 12k Hz
• Parametric Equalizer (Band 9): 9k – 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 720p/480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• Alpine I902D-G6 / X902D-G6: Fits for Volkswagen Golf 6
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
