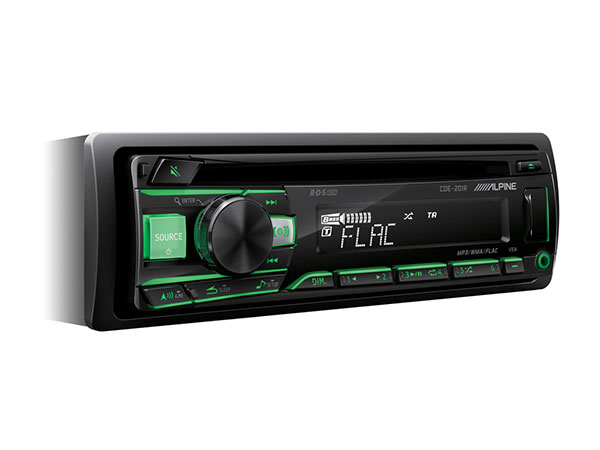

Alpine CDE-201R CD-receiver met USB
De Alpine CDE-201R CD-receiver is een betaalbare 1DIN radio waarbij je profiteert van het Alpine geluid en biedt diverse connectieve eigenschappen om geëntertaind te blijven onderweg.
Verbind je Android telefoon om te genieten van al je opgeslagen muziek, stream Spotify of internet radio of simpel via een USB Stick. Er zijn vele mogelijkheden met de Alpine CDE-201R CD-receiver.
Features
Tuner
- Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
- Memory: Auto Memory
RDS
- RDS Functions: AF, TA, TP, PTY, EON
- PTY (Programme Type) Display
Disc Player
- Disc Type: CD Player
- Disc Playback Type: CD, CD-R/RW
- Music Playback: CDDA, MP3, WMA Playback
- M.I.X. Random Play
- Repeat: Track, All
- Playback Control: Play/Pause/Forward/Backward
- CD Text Display
- CD Text Name Search
- 24-bit DAC
- Zero data Mute
USB Media Connection
- Front USB Connection
- MP3, WMA, FLAC Playback
- Folder Up/Down
- M.I.X. Random Play
- Repeat: Track, Album, All
- USB AOA (Android Open Accessory) 2.0
Sound Tuning
- Subwoofer Level Adjustment
- BASS ENGINE SQ: Level Control 0-6
- Subwoofer Phase Select: 0°/180°
- Subwoofer System Select
- High Pass Filter
- Low Pass Filter
- 2V Voltage 2PreOuts
- 10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
- 3-band Parametric Equalizer
General
- Power Output: 4 x 50 W High Power Amplifier
- Display LCD: 14 Segments White LCD Display 1Line
- Control Type: Rotary Encoder Knob
- Green/Red Selectable Illumination Buttons
- 2 PreOuts (2V, Front + Rear/Subwoofer)
- 24-bit DAC
- Front AUX Input (3.5mm mini jack)
- Steering Wheel Remote Control Ready
- -20dB Mute
- Remote Control Ready
- Clock
- Detachable DIN Trim Plate
- Detachable Face Plate
- Dimmer
- Power Antenna Lead
- Remote Turn-On
Specifications
Max Power Output Ratings
- Max Power Output: 4 x 50W
FM Tuner
- Tuning Range: 87.5 – 108.0 MHz
MW Tuner
- Tuning Range: 531 – 1,602 kHz
LW Tuner
- Tuning Range: 153 – 279 kHz
USB
- USB Requirements: USB 1.1/2.0
- Max. Power Consumption: 500 mA
- File System: FAT 16/32
Sound Tuning
- Subwoofer Level Adjustment: 0 to 15 dB
- Subwoofer Phase Setting: 0° or 180°
- High Pass Filter: Off, 80/100/120 Hz
- Low Pass Filter: Off, 80/100/120 Hz
- Bass Level Control Range: ±7 dB at 100Hz
- Bass Center Frequency: 60/80/100/120 Hz
- Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
- Treble Level Control Range: ±7 dB at 10 kHz
- Treble Center Frequency: 7.5k/10k/12.5k/15k Hz
- Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)
- Mid Level Control Range: ±7 dB
- Mid Center Frequency: 500/1k/1.5k/2.5k Hz
- Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)
General
- Power Requirement: 12V.DC
- Pre Output Voltage (Before Clipping): 2V / 10k ohms
- Aux In: 1.4V / 10k ohms
- Maximum Mounting Angle: 30°
- Weight: 1.2 kg
Dimensions
- Din Size: 1 DIN
- Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
