LIVE 200 P

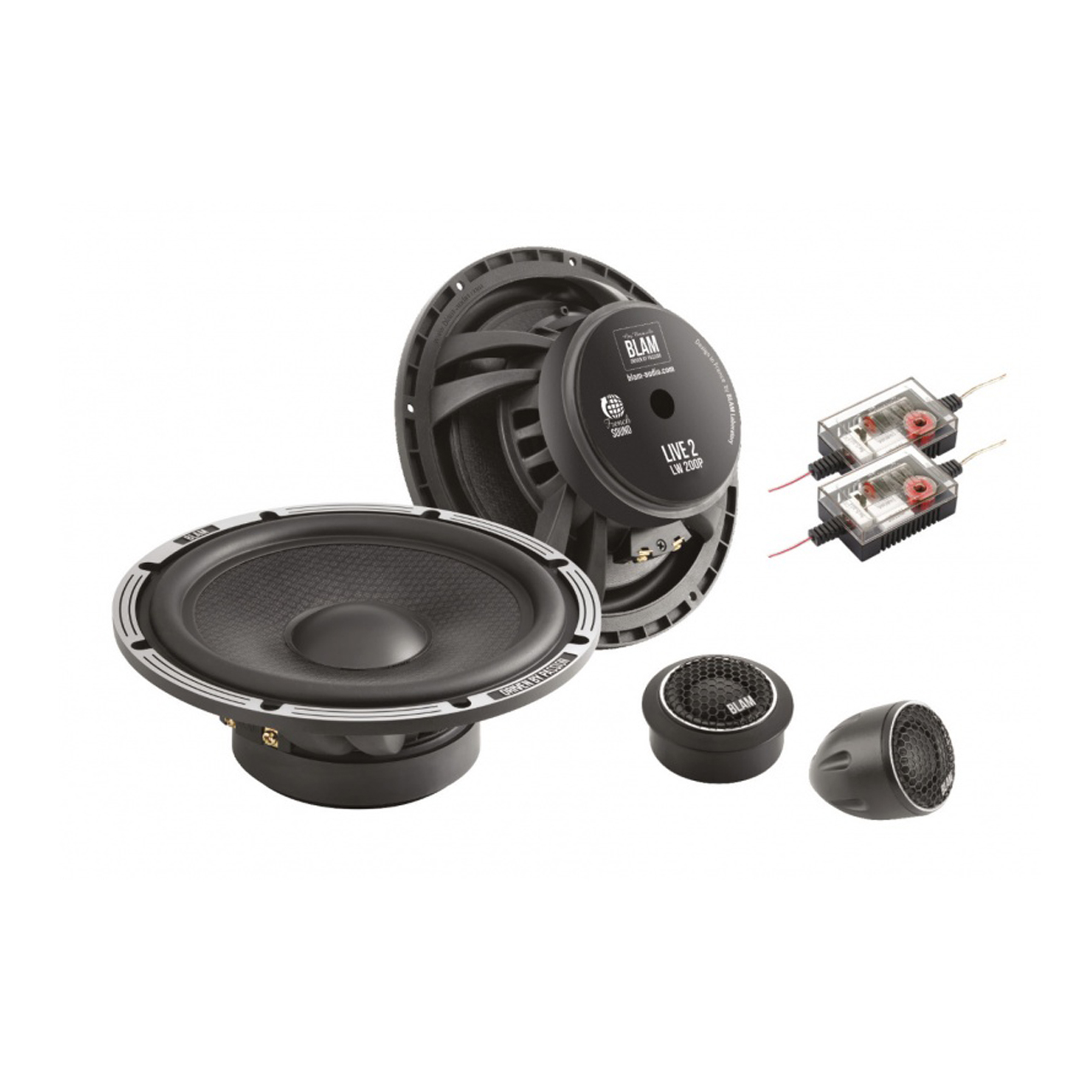

LIVE 200 P- Dit systeem bestaat uit 2 200m (8″) woofers, 2 25mm (1″) sotfdome tweeters en 2 hq highpass 12dB crossovers.

LW200P HIGH POWER WOOFER
• 200 mm (8’’) woofer
• Max power 200 W – Nominal power 100 W
• Frequency response 40 Hz – 8 kHz
• Sensitivity 94.4 dB
• Impedance 2 Ω
– Machined cast aluminium basket
– Epoxy resin and glassfiber cone
– Butyl rubber surround
– Long life “conex” damper
– 38 mm (1.5’’) voicecoil with Kapton former
– 110 mm x 20 mm (4.3’’ x 0.8’’) motor assembly
– Thick magnetic circuit.

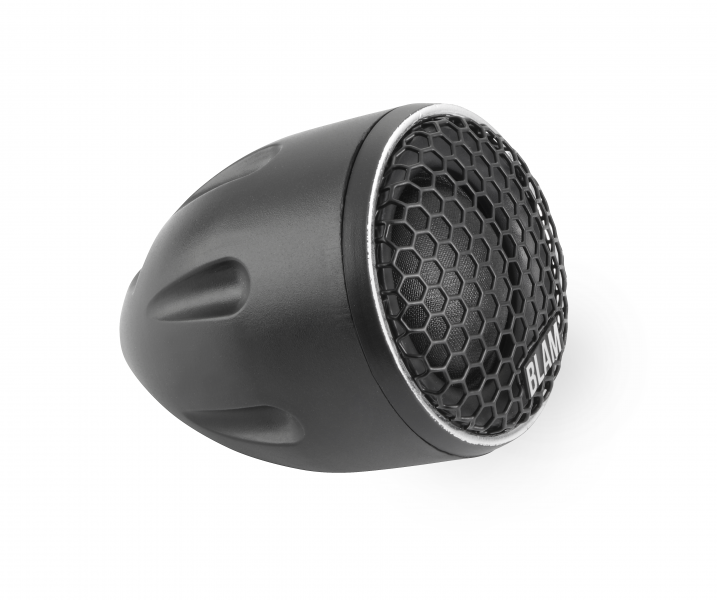

LT25 HIGH QUALITY TWEETER
• 25 mm (1’’) high quality soft dome tweeter
• Max power 100 W – Nominal power 15 W
• Frequency response 2.5 kHz – 25 kHz
• Sensitivity 91.6 dB
• Impedance 3 Ω
• High efficiency magnet (N38 neodymium motor).

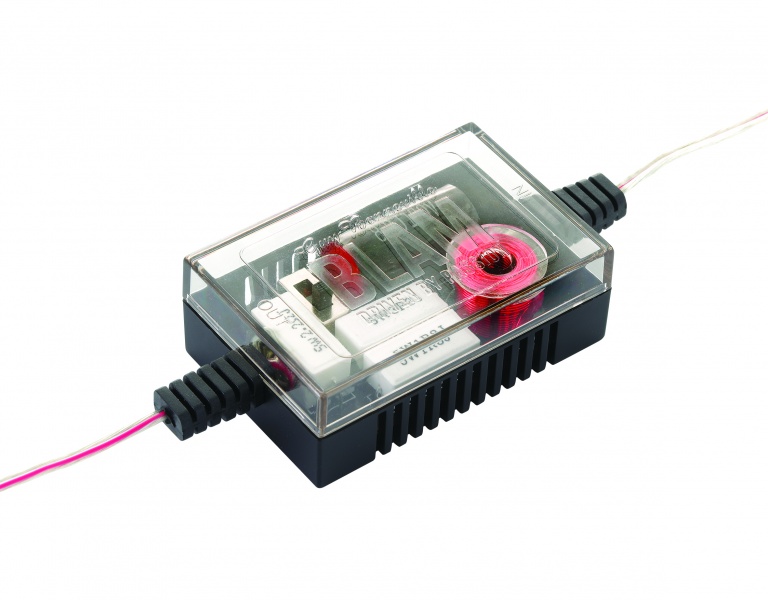

BFT02 HIGH QUALITY CROSSOVER
• High pass 12 dB/octave crossover
• Adjustable tweeter level at +3 dB, 0 dB or -3 dB
