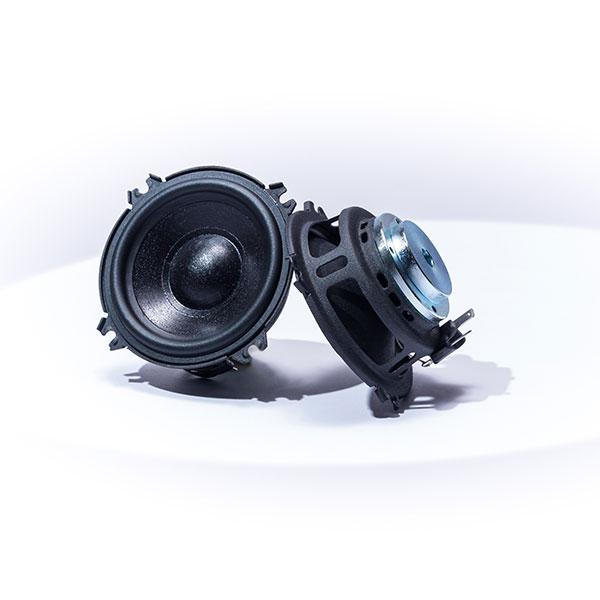

GLADEN PRO 80

GLADEN PRO 80: High-end midrange luidsprekers 80 mm per set
Impedantie: 3 Ohm
Frequentiebereik: 150 – 5000Hz

Specifications:

• Name HG-80PRO DC resistance Rdc 2,6 Ω
• Nominal impedance ZN 3 Ω
• Resonance frequency fs 91,4
• HZ Voice coil diameter 25 mm
• Mechanical Q factor Qms 2,79
• Electrical Q factor Qes 0,36
• Total Q factor Qts 0,32
• Moving mass Mms 4,09 g
• Effective piston area Sd 35 cm2
• Mechanical resistance Rms 0,84 Kg/s
• Compliance Cms 0,74 mm/N
• Force factor BL 4,1 Tm
• Equivalent air volume Vas 1,28 dm3
• Efficiency η 0,26 % SPL 2,83V/1m 91 dB
• High-pass / Hochpass
• > 270 Hz 18 dB/Oct
• > 320 Hz 12 dB/Oct Cone: Paper (sandcoated)
• Spider: Nomex
• Surround: SBR (Rubber)
• Coil former: Aluminum
• Basket: Steel
• Dust cap: Paper +Sisal
