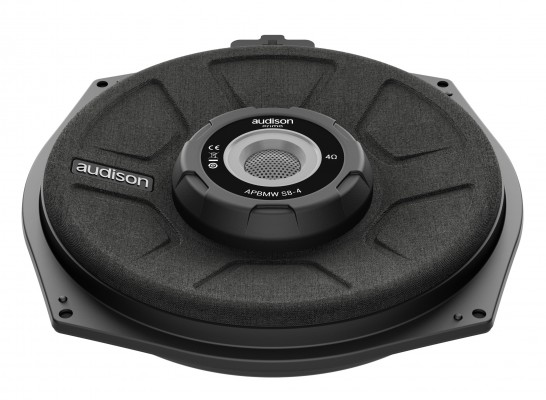

Audison Custom Fit SUBWOOFER 200mm 4Ohm for BMW

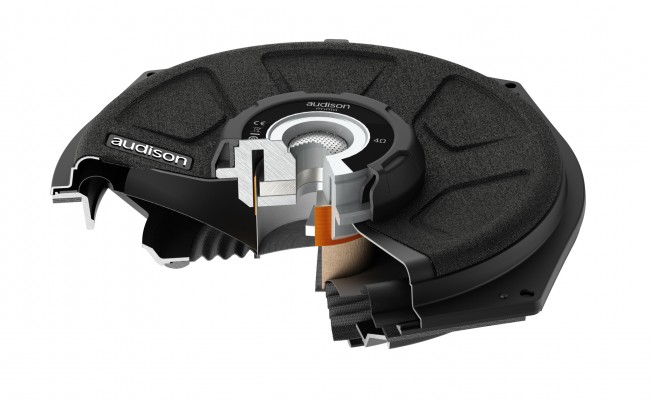

Subwoofers have been designed with electro-acoustic parameters that maximize performanceĀ for the factory box available below the seats. The ABS plastic basket, reinforced with fiberglass, and the acoustic structure featuring a front magnet, provide for a minimal installation depth for a perfect compatibility with the whole range. Two 5 mm polyurethane gaskets, supplied,Ā allow the subwoofer to fit perfectly to the box, decoupling it from vibration.
The 200 mm (8ā³) APBMW SĀ subwoofers allow a ādirect replacementā of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. You can choose betweenĀ S8-2 with 2 ohm impedance and S8-4 with 4 ohm impedanceĀ for improved system composition versatility. In fact, in the mid-high passive filtered system configuration, with the crossover provided,Ā 4 of the 8-channels of the AP 8.9 bit can be configured in bridge mode delivering 130W rms to each S8-4 installed under the seat. The S8-2 can be used in a fully active, multi-amplified front system, maximizing theĀ power of the AP 8.9 bit at 2 ohms, and employing additional 2 channels for the rear system.Ā The Neodymium magnet used on S8-4 and S8-2 allows for greater power and controlĀ than ferrite, while maintaining the depth of installation unaltered.
Technical Data
Component | Woofer | |
SizeĀ | mm (in.) | 200 (8) |
Power HandlingĀ | W peak
W continuos |
300
150 |
ImpedanceĀ | Ī© | 4 |
Frequency ResponseĀ | Hz | 35 Ć· 500 |
Magnet size D x d x hĀ | mm
(in.) |
48 (1.89) x 18 (0.71) x 7 (0.28) |
Weight of one speakerĀ | kg (lb.) | 1,21 (2.67) |
Voice Coil ĆĀ | mm (in.) | 50 (2) |
