SPECIFICATIONS

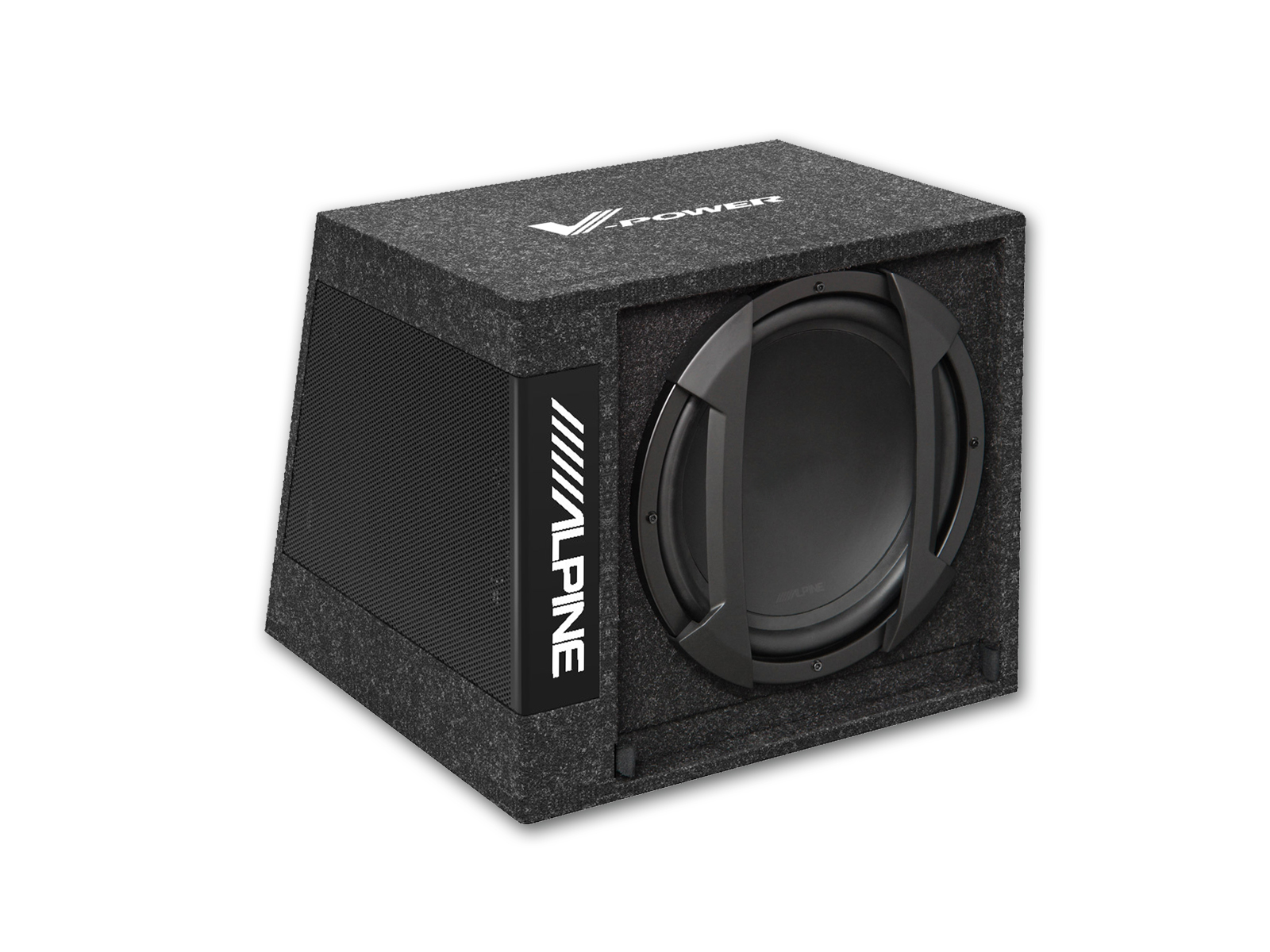

12” (30cm) SWE-1244E Subwoofer

• 650W Peak Power Handling
• Heavy Duty Subwoofer Grill
• Frequency Response: 30Hz – 200Hz

Built-in MRV-M250 Mono Amplifier

• V-POWER DIGITAL (class-D)
• 550W Max Power
• 150W RMS into 4Ohm @14,4V 1%THD
• Adjustable Low Pass Filter, 50-400Hz @24dB/oct.
• Variable Bass EQ (fc=50Hz), 0 to +12dB
• RCA & Speaker Inputs

High Quality Bass Reflex Box

• White Illuminated Alpine Logo (pulsing)
• Removable Port Plug for Sealed and Vented Operation
• All Plug Connectors (Easy Removal, no Tools Required)
• Dimensions: 450mm (W) x 392mm (H) x 315mm / 422mm (D)

Remote Bass Level Control

• 12dB of linear Adjustment Range
• 5m Connection Cable included
• Easy plug and play Installation
