FEATURES
Radio / DAB Tuner

• Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
• Memory: Auto Memory
• Seek Mode: Local, DX, Pre-Set, Service
• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function

BLUETOOTH®

• Built-in BLUETOOTH® Module V4.2
• HFP (Hands-Free Profile) Compatible
• A2DP (Advanced Audio Distribution Profile) Compatible
• AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: (Outgoing and Incoming)
• 24 Menu Languages
• Microphone Included

Works with iPhone®

• Compatible with iPhones featuring a lightning connector
• Various search functions and Album Artwork Display
• Battery Charging

Connectivity

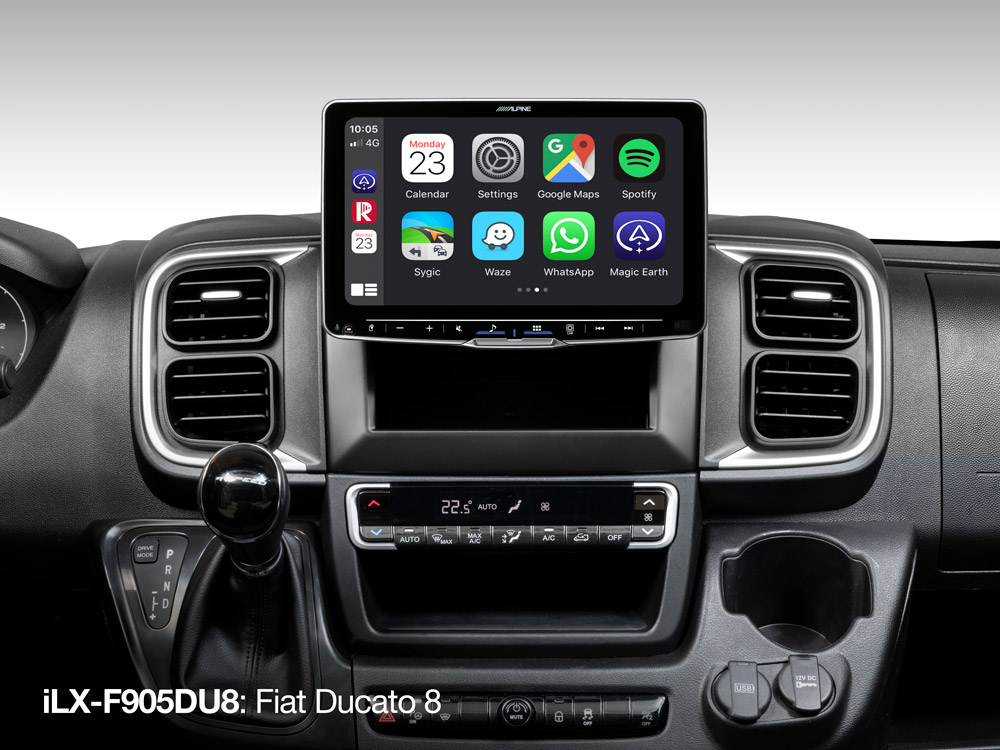

• Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
• Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
• Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam

Navigation Function

• Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
• Includes GPS enabled navigation antenna

USB Media Connection

• 2x USB cable included
• USB port 1: data port / USB port 2: charging port
• Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
• Video Playback: MP4, MOV, FLV, MKV compatible
• Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
• Various search functions included

Sound Tuning

• Bass Engine SQ and Bass Engine PRO sound tuning
• Subwoofer Level Adjustment
• 6 V PreOut
• 10 Equalizer PreSets
• 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
• 6-Channel Digital Time Correction
• 2-way Digital Crossover
• Independent Source Volume Level Setting
• For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section

General

• 4x 50 Watts Class-D High Power Amplifier

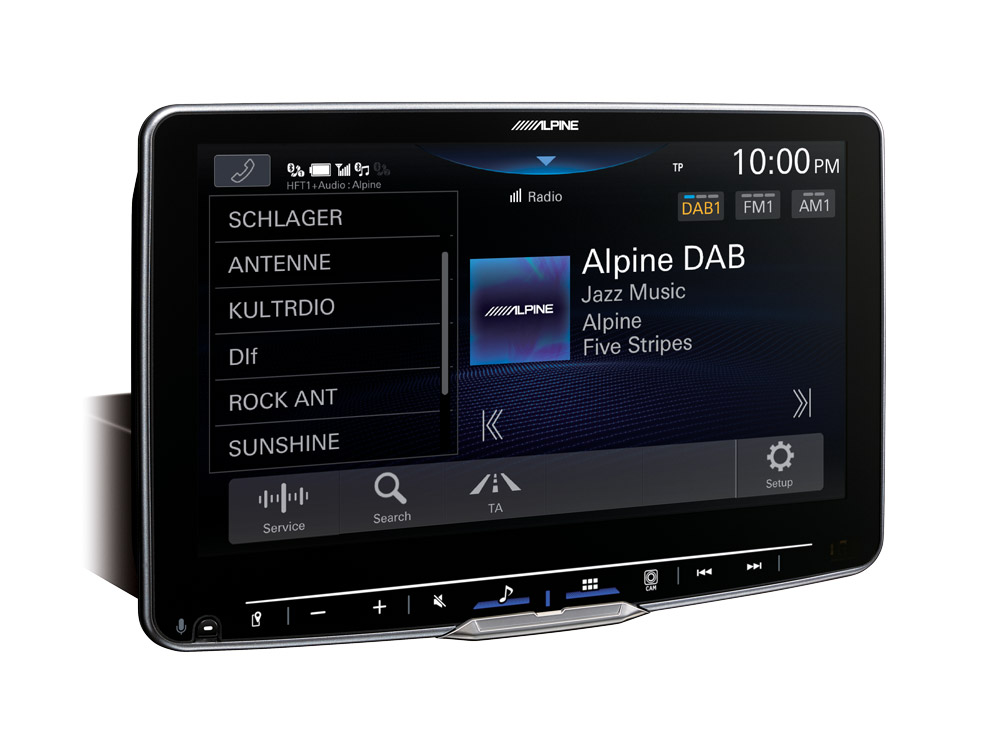

• 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)
• Display angle adjustable after installation
• 3 PreOuts (6 V, Front / Rear / Subwoofer)
• 1 A/V AUX Input (3.5 mm micro jack)
• 1 HDMI input / 1 HDMI output

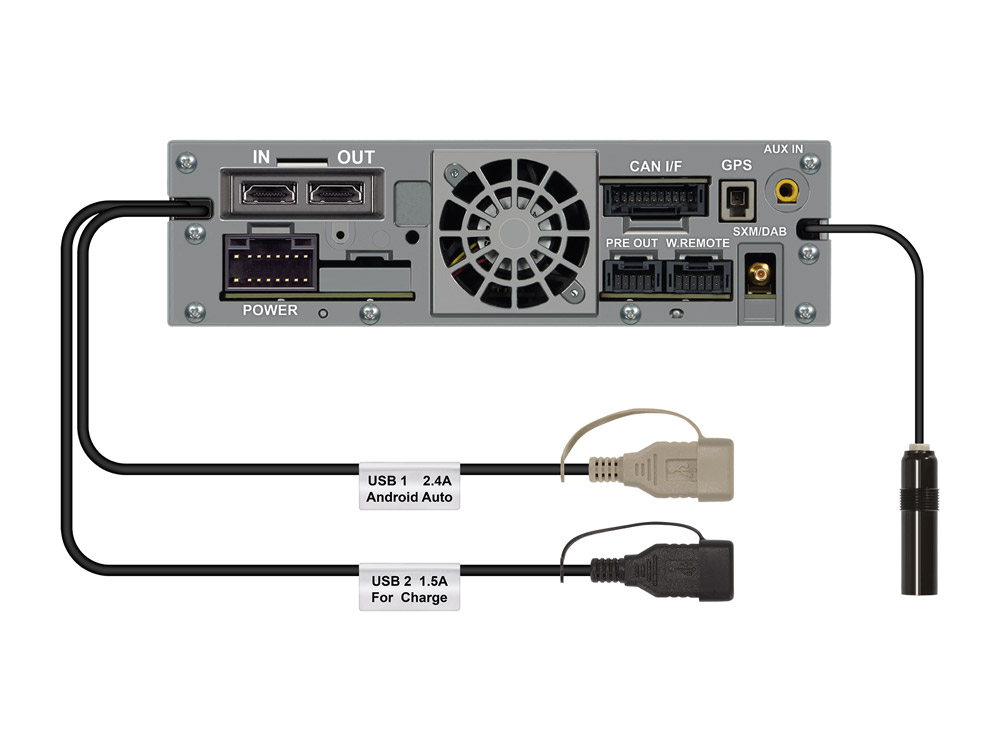

• 2 USB Ports (1x USB data port / 1x USB charging)
• Steering Wheel Remote Control Ready
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
• Camera Distance Guides (adjustable)
• Live Contrast Adjustment
• Menu Language: 24 Languages
• Auto Dimmer
• Anti-theft security code
• Engine Start-Stop unaffected

Installation

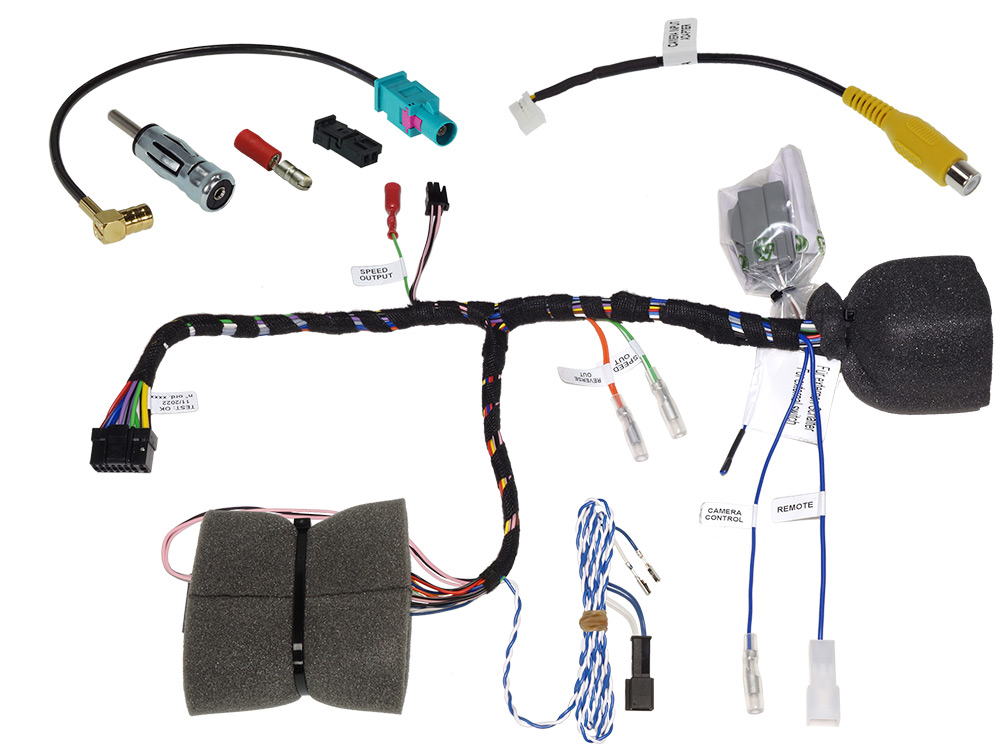

• Includes Plug-and-play wiring harness to connect an Alpine Head Unit to the Fiat Ducato 8 electric system
• Includes steering wheel remote control interface to enable operation of your Alpine Halo system from your steering wheel buttons (including phone operation)

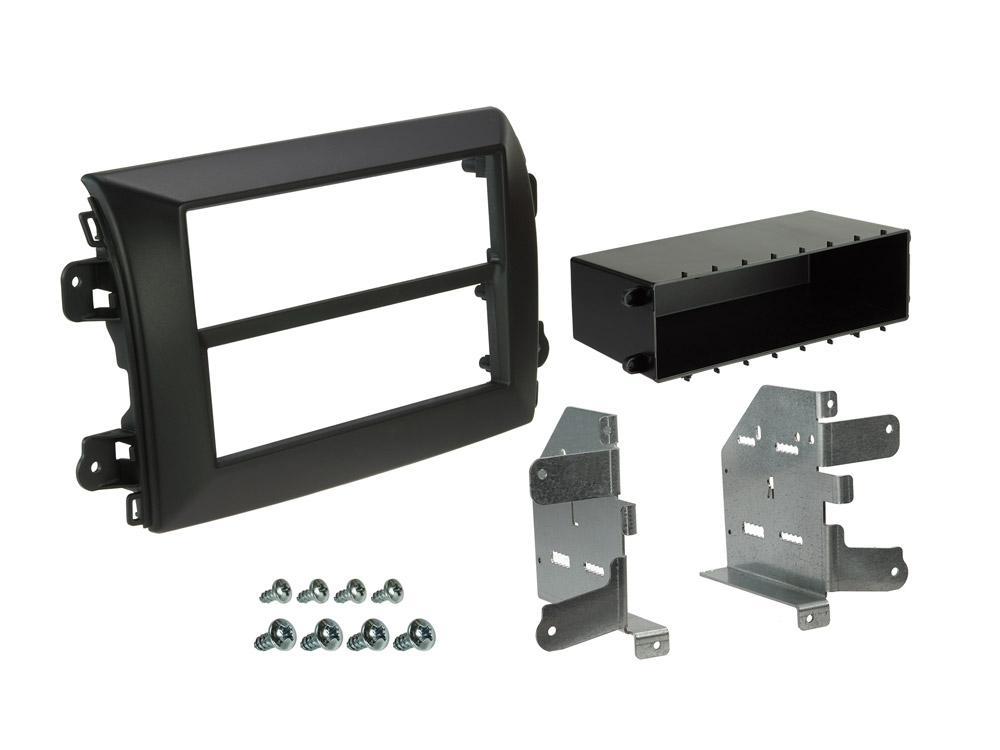

• Custom-fit metal brackets to mount the Halo unit
• Plastic trim panel + 1 DIN pocket
• LIN Bus Adapter KWE-Qi-DU8 (sold separately) needed for Ducato original Qi phone charger to work with Alpine system
• Wireless Charging Console KCE-3QI (sold separately) for Ducato not equipped with an original Qi phone charger
