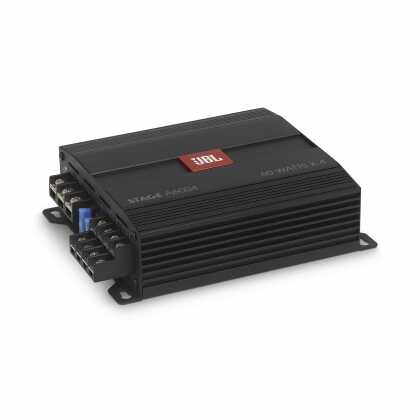

JBL Stage A6004

Power you will feel at your core. JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable – and once they turn on, they’ll make a transducer sit up and sing.

Operating voltage 9 – 16V
RMS power @ 4 ohms 60W
RMS power @ 2 ohms 70W
RMS bridged power @ 4 ohms 140W
Total peak power 560W
Frequency response 20Hz – 20kHz @ -1dB
THD + N at rated power (20Hz – 20kHz) <1%
Line-in signal-to-noise ratio(reference to 1 watt) >75dB
Maximum high input signal level 12V
High input maximum sensitivity 0.5V
Maximum line input signal level 5V
Line input maximum sensitivity 0.2V
Quiescent current draw <1.2A
Fuse size 2 x 15A
Dimensions (H x W x L) 50 x 145 x 193.6mm
Weight 1.381kg
