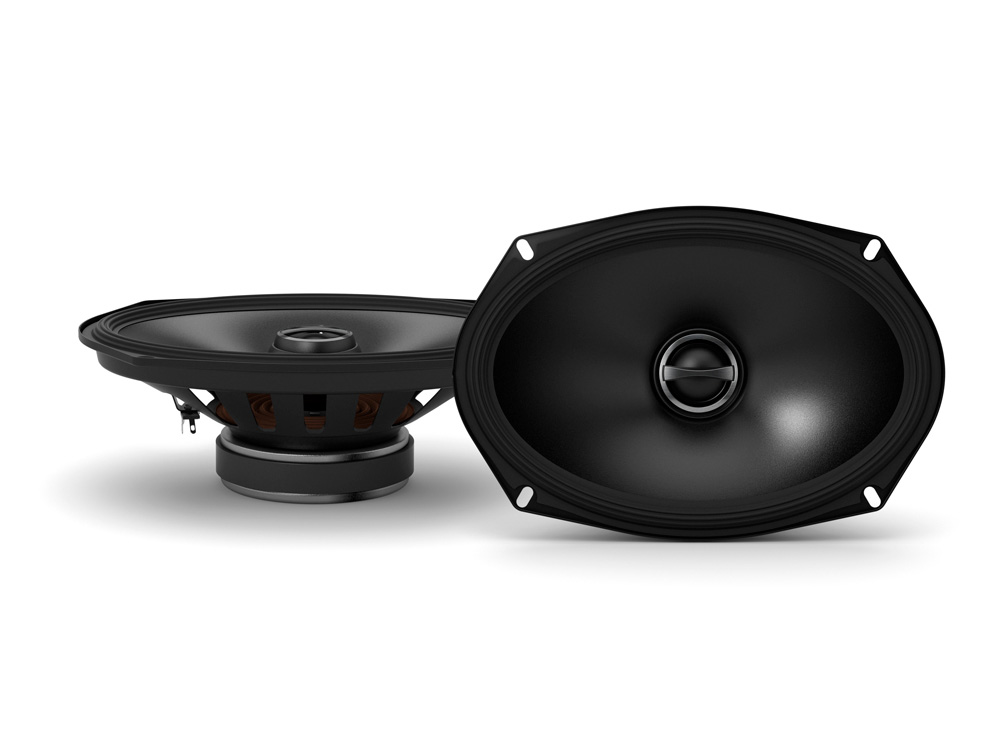

Introducing the S-Series speaker line
The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.
Powerful Speaker Motor
The S-Series speakers have a large voice coil. The 6.5-inch and 6×9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.
The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.
Protect Your Speakers
Speaker grilles are available for several of the S-Series speakers and are sold separately. The durable mesh grilles are sold in pairs.
- CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
- HAMR (High Amplitude Multi-Roll) Surround
- Large 35 mm Voice Coil
- Magnet Material: Ferrite
- Grill sold separately: KTE-S69G
- Tweeter Type: 1″ Wide-Range Silk Dome
- Magnet Material: Neodymium
- Grade: 2nd order Network Design
- Peak Power: 260 Watts
- RMS Power: 85 Watts (CTA-2031 Compliant)
- Frame 161 x 237 mm
- Mounting Depth: 74.4 mm
- Mounting Height: 7.4 mm
- Magnet: 100.0 mm
- Frequency Range: 65 Hz – 22 kHz
- Impedance: 4 Ohms
- Sensitivity: 90 dB/W
