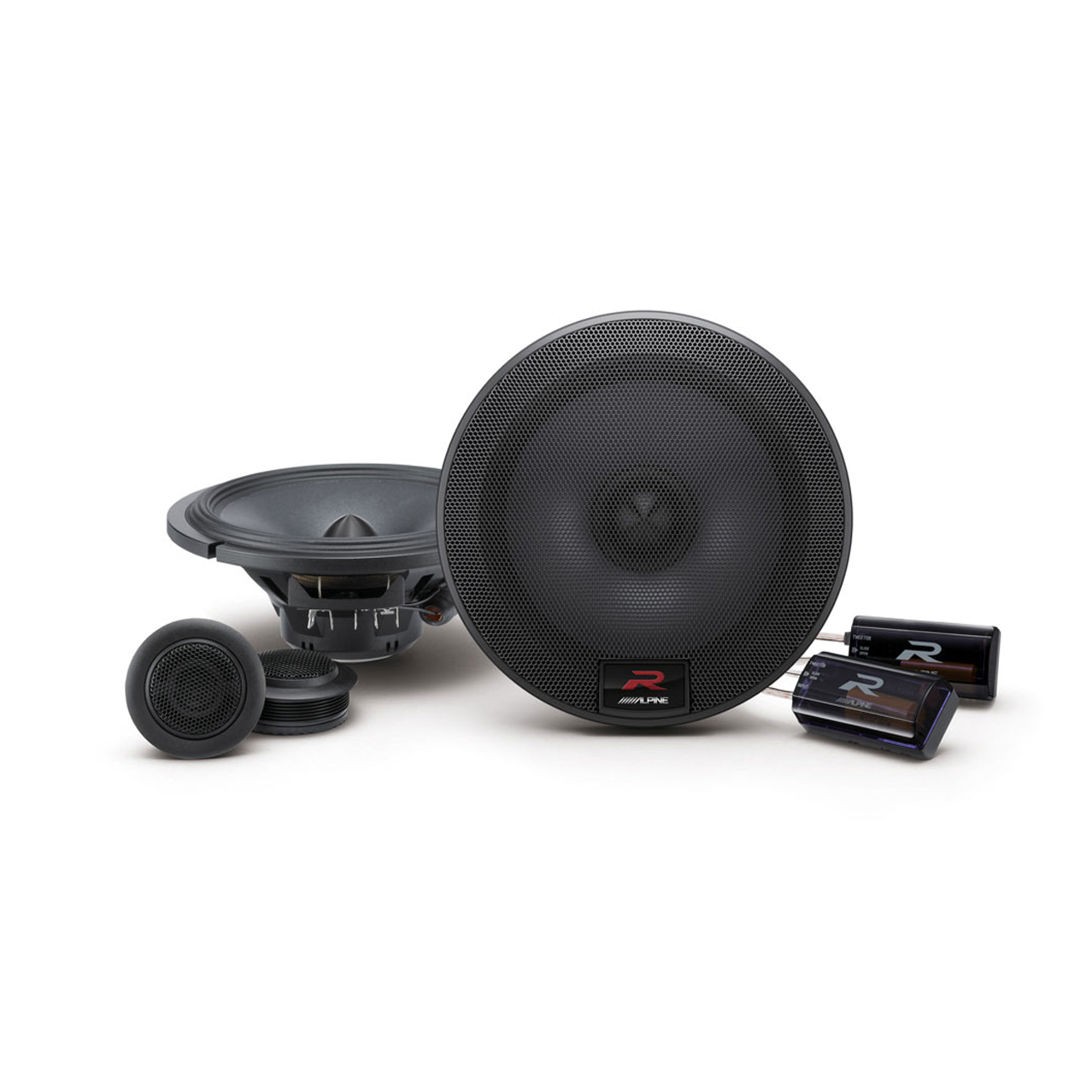

Alpine R-S65C – 6-1/2″ (16.5cm) COMPONENT 2-WAY R-SERIES SPEAKER
Meet the latest generation of R-Series speakers: engineered to deliver high bass power while maintaining extreme sound clarity. The R-Series speakers include both component and coaxial models, both of which are highly efficient and provide good installability in a wide range of vehicles.
Peak Power: 300 Watts
RMS Power: 100 Watts
Frequency Response: 65 Hz – 29 kHz
Product Info
HAMR Surround
The High Amplitude Multi-Roll (HAMR) surround allows a maxi- mum, linear cone excursion for high SPL, while maintaining full control over the diaphragm at any excursion stage for high sound clarity.
Great Installability
Alpine uses high-power neodymium magnets for the new R-Series speakers. This means the magnet can be much smaller compared to traditional speaker designs, allowing for a much lower mounting depth and overall space requirement inside the car door.
Outstanding Clarity
The all-new voice coil is made of Aluminium, compared to the regular copper wire coils. The benefit is higher clarity especially in the mid-high frequency area.
Wave Guide Focuses the Sound
Alpine has developed a Wave Guide for the cone to further improve sound quality. Mounted over the centre cap, it prevents phase distortion of the sound waves from the diaphragm, and focuses the sound for optimum clarity.

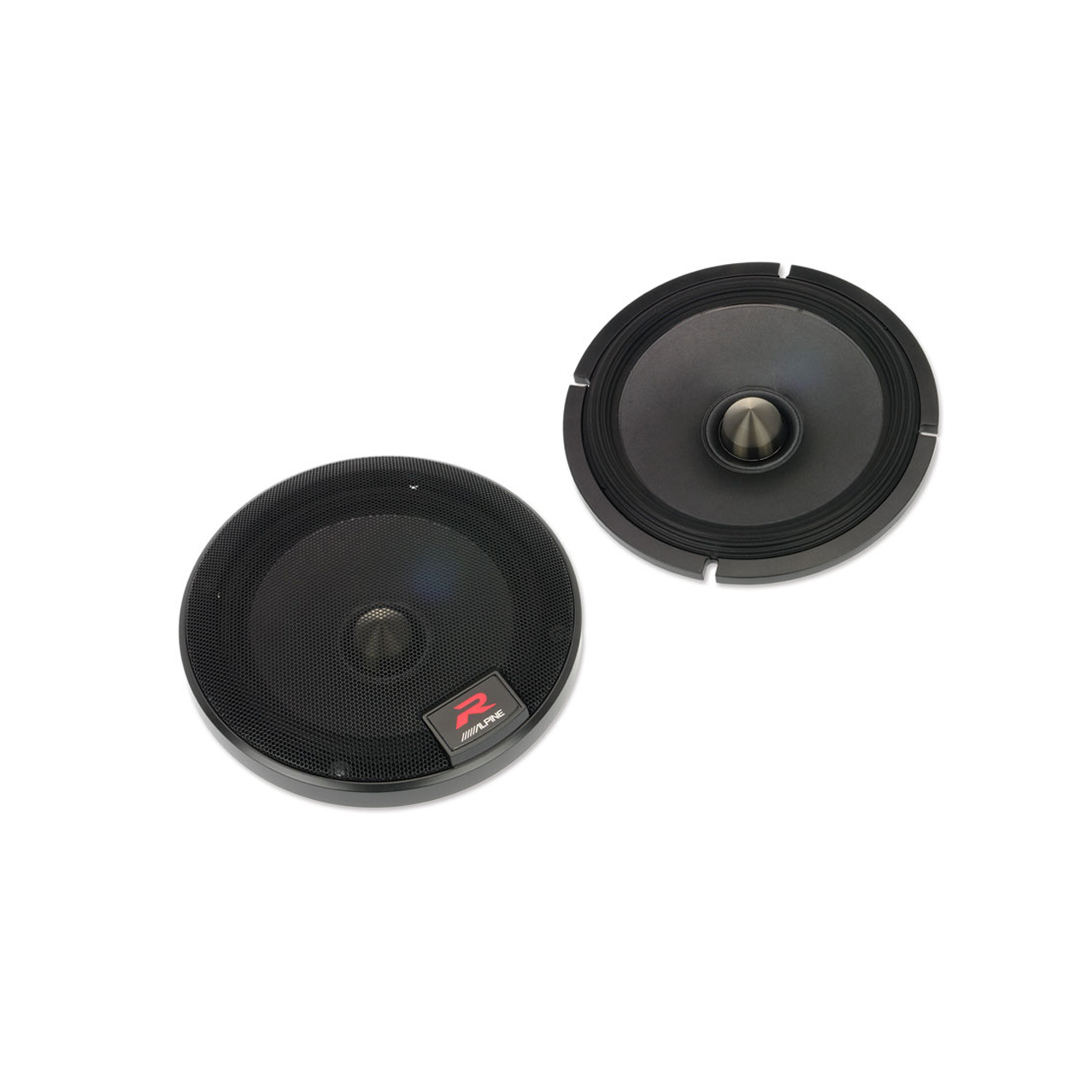

Included Mesh Grill
We included a metal mesh grill to protect the woofer in open installations.
Included Trim-Rings
To allow easy installation in a wide range of vehicles, we included several trim rings and a 6 x 8ā adapter.

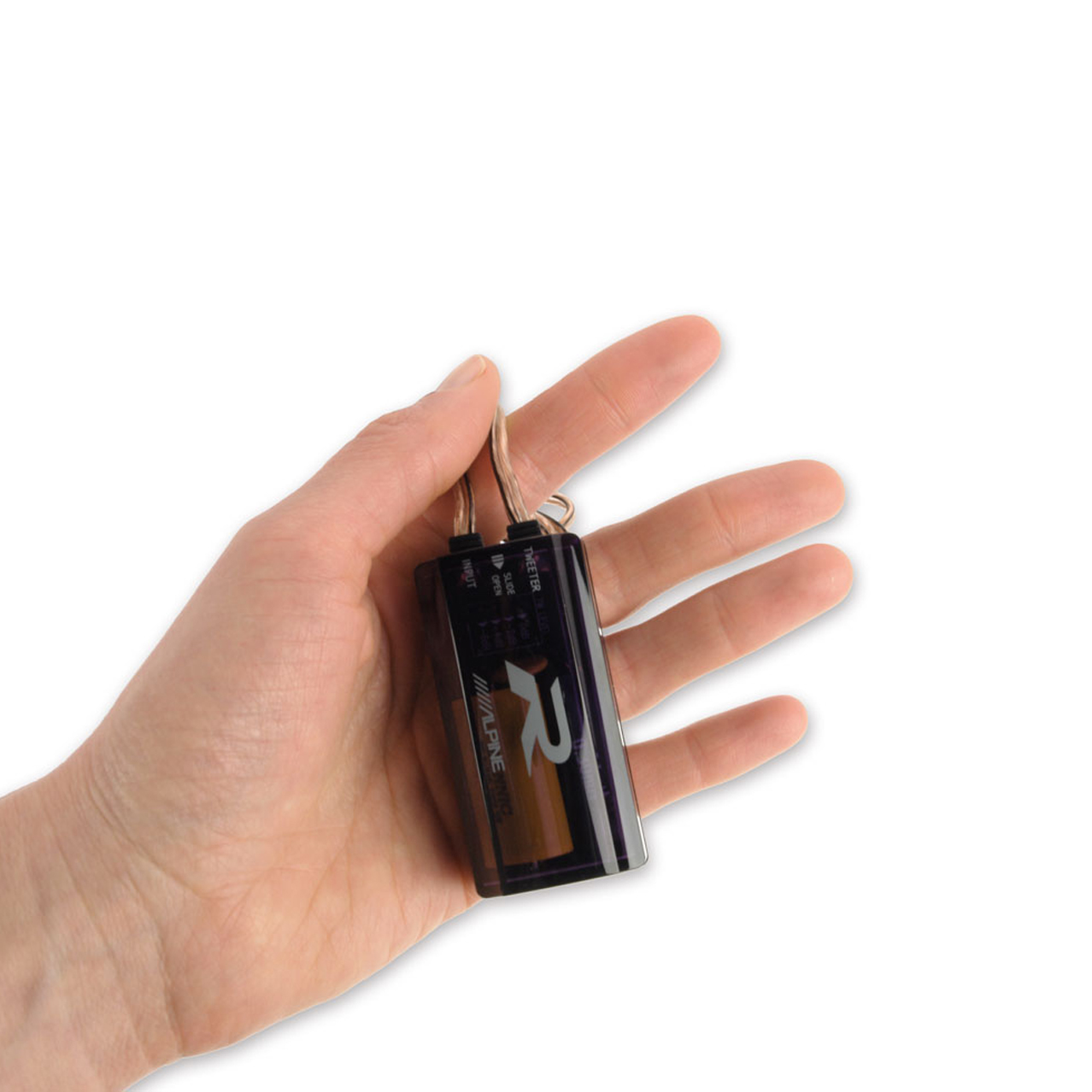

Easy To Install Network
The external network is very compact and easy to install. Simply slide open the cover to gain access to the tweeter level adjsutment (0dB / -2dB / -4dB / – 6dB). This ensures a perfect balance between woofer and tweeter level in your car.
Swivel Tweeter
Both component and coaxial models feature a ring tweeter that swivels to improve off-axis response in less-than-ideal locations. You can aim it by hand for best imaging and staging at your listening position. The component type tweeter (R-S65C only) can be installed in flush-mount or on-dash configuration ā all installation adapters are included.
Eigenschappen Specificaties
Features
Tweeter
- 1ā²ā² (2.5cm) Ring Radiator Tweeter
- Large Aluminium Voice Coil
- Neodymium Magnet
- Swivel Application
- Flush Mount, Surface Mount Application
Woofer
- Hybrid Multi Layer Cone
- Linear Drive Technology
- HAMR Surround
- Large Aluminium Voice Coil
- Aluminium Square Wire
- Ultra High Density Neodymium Magnet
- DX Ring
- Wave Guide
- Shallow Mounting Design
- Mounting Adapter Kit Included
- Bi-Amp Ready Design
Crossover Network
- In-line Network Design
- Tweeter level Adjustment: 4 Steps (0, -2, -4, -6 dB)
- High Grade Network Components
SPECIFICATIONS
Power Handling
- Peak Power: 300 Watts
- RMS Power: 100 Watts
Dimensions
- Woofer Mounting Diameter: 136 mm
- Woofer Mounting Depth: 59 mm
- Tweeter Mounting Diameter: 58 mm
- Tweeter Mounting Depth: 19 mm
General
- Frequency Response: 65 Hz – 29 kHz
- Imp Impedance: 4 Ohms
- Sensitivity: 88 dB/W (1m)
