Alpine INE-F904D radio pasklaar Hyundai i30
€1.299,00
This installation kit allows an easy and clean install of the INE-F904D in a Hyundai i30 from model year 2017.

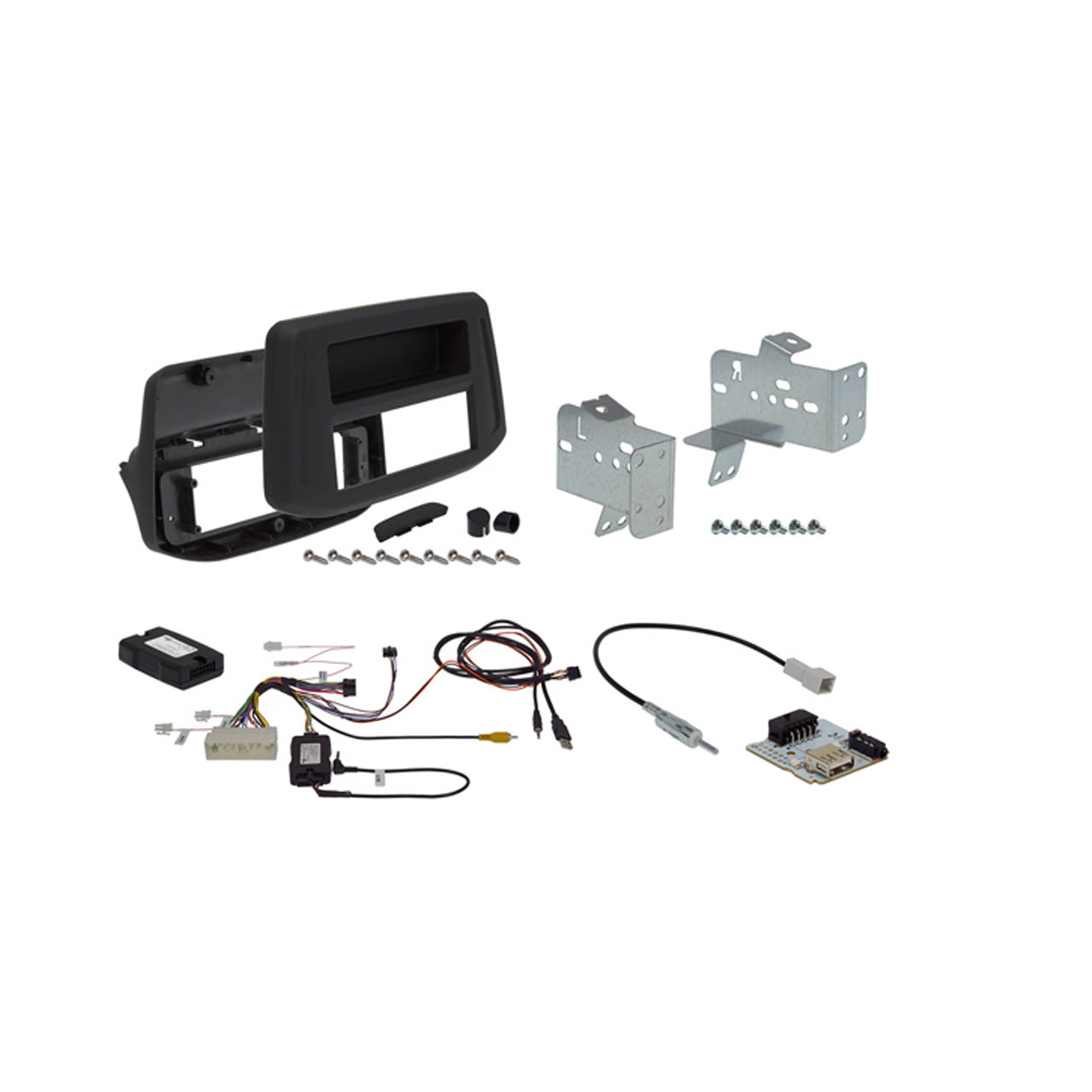

The KIT-F9HY-i30 includes a custom-fit frame, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons.
It also includes a rear camera interface that allows plug-and-play connection of the original Hyundai rear camera, as well as an USB / AUX adapter.
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
Uitverkocht
Alpine INE-F904D radio pasklaar Hyundai i30

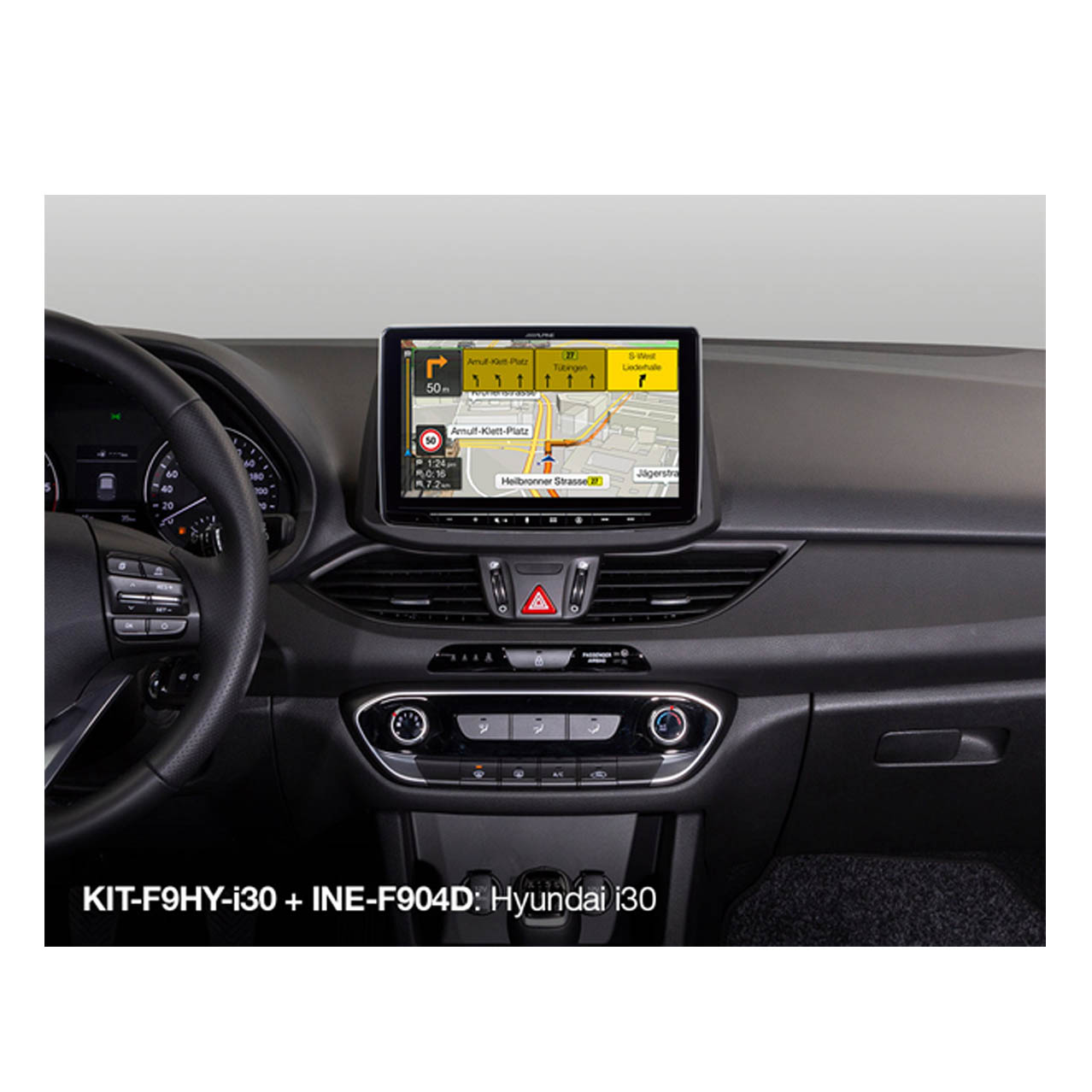

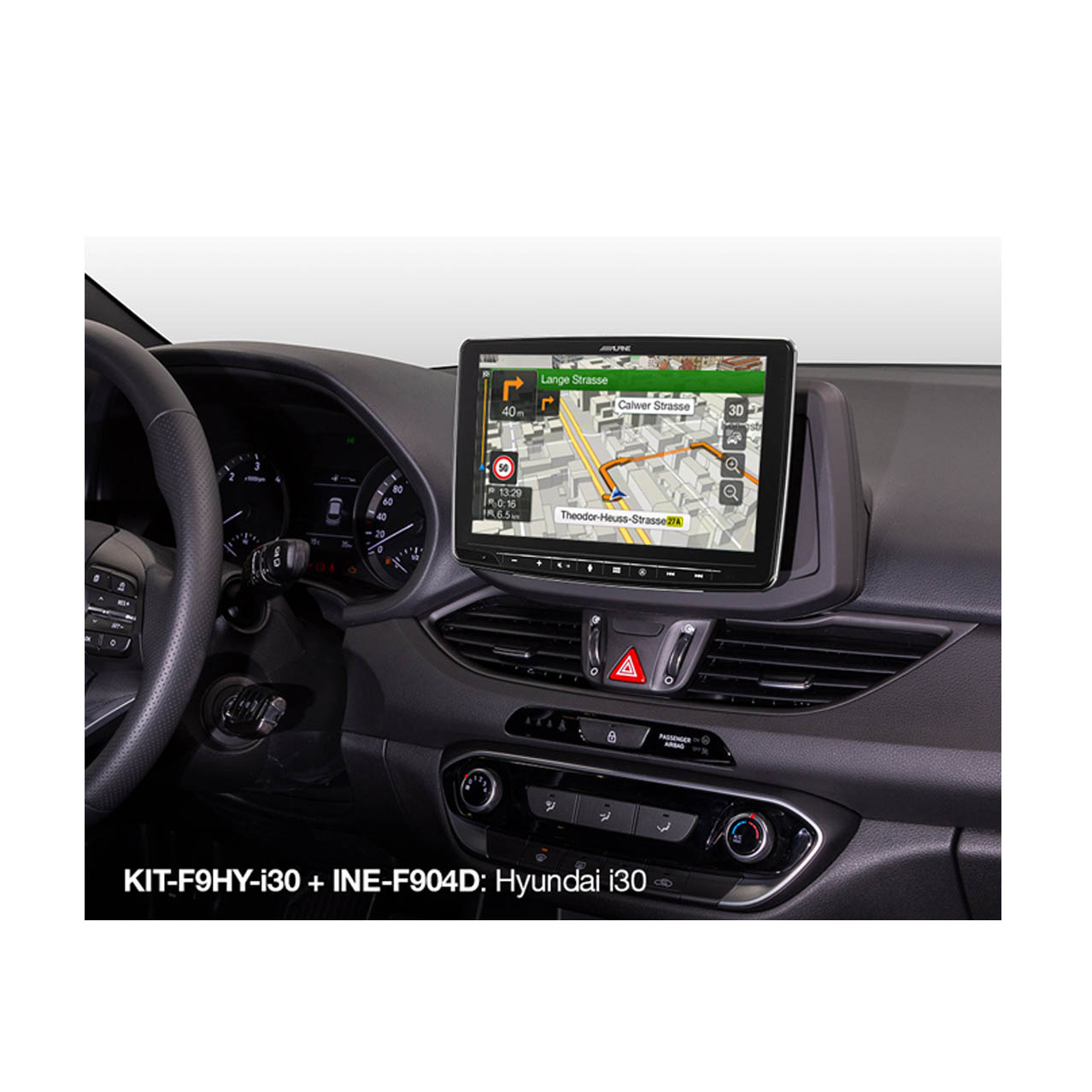

Alpine INE-F904D installation Kit for Hyundai i30 from 2017 and newer
This installation kit allows an easy and clean install of the INE-F904D in a Hyundai i30 from model year 2017.
The KIT-F9HY-i30 includes a custom-fit frame, wiring harness with CAN interface and an antenna adapter. The CAN interface retains usage of the steering wheel remote control buttons.
It also includes a rear camera interface that allows plug-and-play connection of the original Hyundai rear camera, as well as an USB / AUX adapter.
Alpine Halo9 Navi
The INE-F904D is a DAB+ Advanced Navi Station with a 9-inch WVGA touch-screen and drive-less design (no CD/DVD slot). It uses a 1DIN chassis for installation, but the display “hovers” in front of the vehicle’s dash, allowing the oversize screen to be added to a variety of vehicles without the need for custom installation. The INE-F904D features iGo primo nextgen navigation with pre-installed TomTom maps for 46 countries. Customers even get 3 years free-of-charge map updates for their navigation systems.
1DIN Chassis – 9″ Screen
The INE-F904D features a 1DIN chassis, making it immediately compatible with any vehicle with either 1DIN or 2DIN radio dock. The 9-inch high-resolution touch-screen is attached to the front of the media box with steel brackets to achieve a rock solid display that does not wobble while driving.
Edge-to-Edge Glass Design
The amazing 9-inch display sits in a super slim housing with edge-to-edge glass and a nice chrome trim around the edge. Combined with the touch-responsive hard-keys on the bottom it makes the units stunningly beautiful and very modern in function and appearance.
Adjustable Display Angle
You can adjust the INE-F904D’s display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. After the display angle is set, it gets locked into place during installation to be rock-steady while driving over any terrain and when pushing with your finger on the display to control the unit.
Adjustable Display Height and Distance
The display height can be adjusted +/- 3cm from the center position. This allows fully standing or hanging display configurations as well as everything in between. You can also adjust the distance of the display to your dash in a 20mm range. After the display height and distance to the dash are selected, everything gets locked into place to be very solid.
Built-in Navigation with TomTom Maps
The built-in iGo Primo nextgen navigation system uses TomTom maps and comes with pre-installed maps for 46 European countries. Select from hundreds of thousands of POIs to find gas stations, restaurants, sightseeing spots, shopping malls and much more. You can also input your destination using Geo-coordinates. Lane guidance always informs you in which lane to drive to not miss any exit or turn. TMC feeds your system with up-to-date traffic information.
3 Years Free-Of-Charge Map Updates
You can frequently update your TomTom maps database free-of-charge for the first 3 years. After that you purchase map updates by country or even regional packages such as Germany/ Austria/ Switzerland or Western Europe at very reasonable prices.
Built-in DAB+ Digital Radio
The built-in DAB+ tuner uses the most advanced digital technology to deliver radio reception with outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: choose from a much wider range of radio stations and after the initial station scan easily select your desired channels from an alphabetic or genre list of available stations.
Drive-Assist Camera and Parking Sensor Display
Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can easily connect these cameras, as well as the parking sensors of your vehicle (requires optionally available CAN interface) to your INE-F904D.
Stay Connected on the Road
Your Alpine Halo9 Navi lets you stay connected on the road. You can use online navigation, communication and streaming services on the 9-inch touch-screen display in a safe and convenient while you drive.

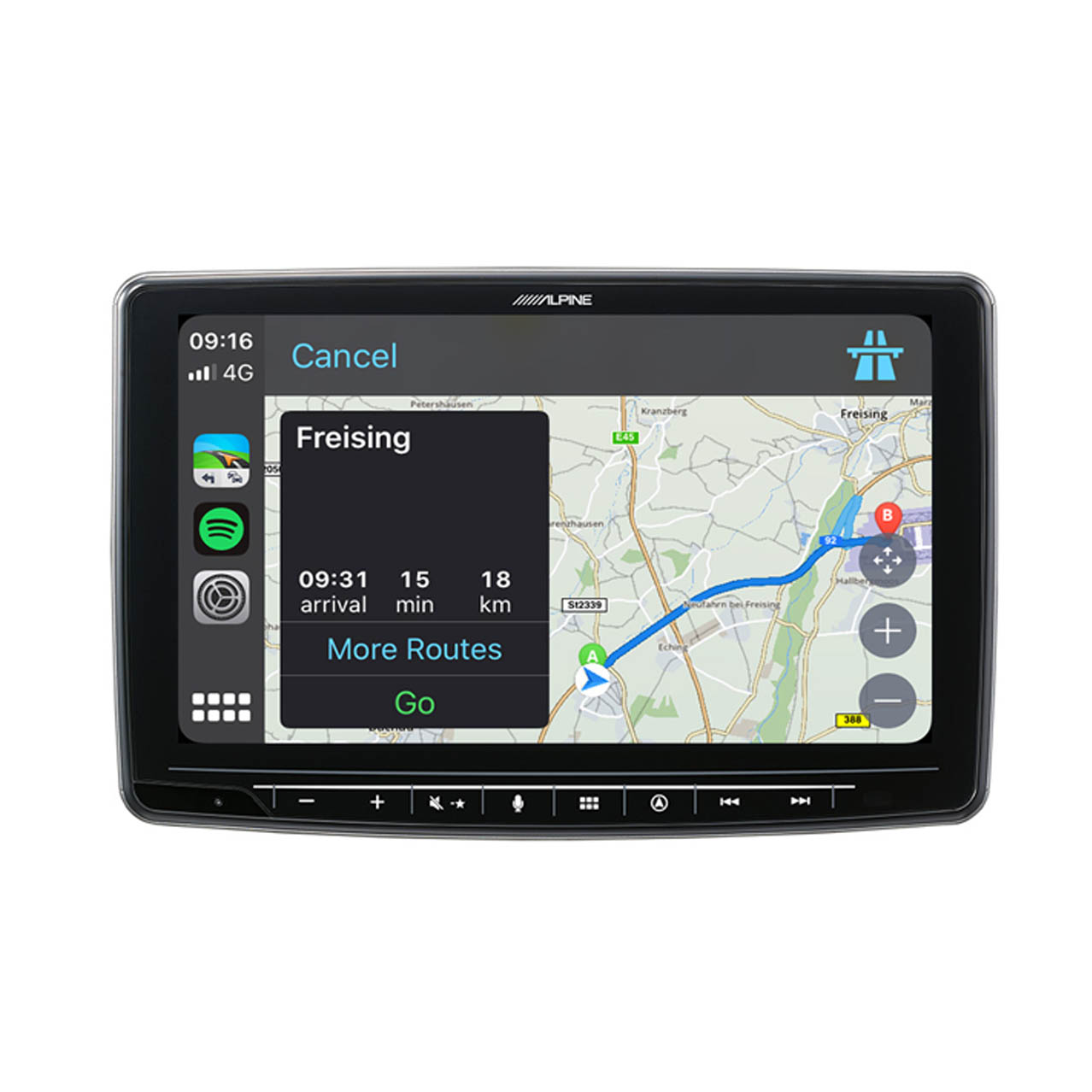

Works with Apple CarPlay
Simply connect your iPhone to the USB port of your Alpine Halo9 and launch Apple CarPlay to communicate, navigate and stay entertained with your favorite smartphone apps. Most apps are Siri optimized so you can keep your eyes on the road. Apple CarPlay is compatible with iPhone 5 and newer. Below we listed a small selection of recommended Apple CarPlay compatible apps.
Works with Android Auto
Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it’s designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they’re needed. Below we listed a small selection of recommended Android Auto compatible apps.
Sygic
The app will guide you safely to your destination even without an internet connection. Sygic includes high-quality 3D maps. Regular map and application updates are free of charge. With Sygic GPS Navigation, you can easily escape the traffic or find the best parking spot. You will also have up-to-date information about fuel prices on petrol stations. And you will avoid speeding tickets with speed limit and speed camera warnings (currently available for Apple CarPlay only).
Google Maps
Over 220 countries and territories mapped and hundreds of millions of businesses and places on the map. Get real-time GPS navigation with satellite view, traffic, and transit info, and explore local neighborhoods by knowing where to eat, drink and go – no matter what part of the world you’re in.
Waze
Waze is another highly popular, community-based navigation app. Always know what’s happening on the road. Even if you know the way, Waze tells you instantly about traffic, construction, police, crashes, & more. If traffic is bad on your route, Waze will change it to save you time.
Spotify
Spotify is the best way to listen to music and podcasts. Search for any track, artist or album and listen for free. Make and share playlists. Build your biggest, best ever music collection. Get inspired with personal recommendations, and readymade playlists for just about everything.
TuneIn Radio
“Alpine Halo9” is compatible with Apple CarPlay and Android Auto. This gives smartphone users an incredibly intuitive way to make calls, use navigation, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience.
Calendar (Apple CarPlay)
The new calendar app allows you to see your schedule for the day in a simple and well organized format.
FEATURES
Tuner
- Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
RDS
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
BLUETOOTH®
- Built-in BLUETOOTH® Module
- Wide Band Speech Technology
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Connection: SSP (Simple Secure Pairing) Supported
- Individual Profile Connection Hands Free Phone and Music Streaming
- Phone Book: Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
- Signal Strength Indicator
- Battery Level Indicator
- Menu Language Selection: 24 Languages
- Firmware Updatable
- Microphone Included
Made for iPod® / iPhone®
- Connection: KCU-471i Required (Sold separately)
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabet Search
- Artwork Display
- Direct Up / Down: Playlist / Artist / Album / Genre / Composer
- M.I.X. (Shuffle) Play: Song, Albums, All
- Repeat
- Battery Charging
Connectivity
- Works with Apple CarPlay (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone)
Navigation Functions
- Map Coverage: 46 Countries (Western and Eastern Europe) by TomTom maps
- 3 years free-of-charge map update
- Menu Language: 29 Languages
- Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
- Advanced Address Search
- Post Code Search
- Free Form Search
- Partial Name Search
- Advanced POI Functions
- Smart Routes: Smart Routes using historic traffic patterns
- Advanced Route Planning
- Eco Route Search
- 7 Alternative Route Recommendation
- Advanced TMC Mode
- Map Display Mode: 2D Heading Up, 2D North Up, 3D
- 3D City Mode: 3D Building/Icon Display
- Elevation Map Display: 3D maps with elevation mode
- 3D Motorway Junction View: Junction View with Sign Post
- Drive Lane Suggestion
- Tunnel Mode
- Highway Mode
- Voice Guidance Mixing
- Text-to-Speech
- Direct Phone Call from POI data
- 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse
USB Media Connection
- USB Connection: USB Extension Cable Included
- Music Playback: FLAC/MP3/WMA/AAC compatible
- Video Playback: MP4 compatible
- File / Folder Name Search
- Tag Info Search
- Folder Up / Down
- M.I.X. Random Play
- Repeat
Sound Tuning
- Bass Engine SQ
- Bass Engine™ Pro
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- 4V High Voltage PreOut
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- Dual HD EQ (9-band Parametric Equalizer front/rear)
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- Customized Sound Setting by Car Type
- MediaXpander HD
- Application Volume Level Setting
- Sound Setting Data Download
- Easy, Step-by-Step Sound Customization
- Alpine TuneIt App ready
General
- Power Output: 4 x 50 W High Power Amplifier
- Advanced Power IC
- Display: 9-inch Capacitive WVGA High Resolution Display
- White LED Backlighting System
- Control Type: Touch, Drag, Flick
- My Favorites Function
- Automatic Setting Change for 2 Users
- AUX-In: 1 A/V AUX Input (3.5mm micro jack)
- Steering Wheel Remote Control Function
- Vehicle Display Interface Ready (UART connection)
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Rearview Camera Display Automatic Boot-up
- Menu Language: 24 Languages (for AV / Bluetooth),
- Clock
- Auto Dimmer
- Anti-theft security code
- Firmware Updatable
- Power Antenna Lead
- Remote Turn-On
- HDMI Input (Alpine Special HDMI connector required)
- Engine Start-Stop unaffected
Installation
- Perfect F.I.T. Kit Solutions available
SPECIFICATIONS
Screen
- Screen Size: 9-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
FM Tuner
- Tuning Range: 87.5 – 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 – 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
- Tuning Range: 153 – 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
USB
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
- Channel Separation (at 1kHz): 85 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 – 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 – 100 Hz
- Parametric Equalizer (Band 2): 63 – 315 Hz
- Parametric Equalizer (Band 3): 125 – 500 Hz
- Parametric Equalizer (Band 4): 250 – 1k Hz
- Parametric Equalizer (Band 5): 500 – 2k Hz
- Parametric Equalizer (Band 6): 1k – 4k Hz
- Parametric Equalizer (Band 7): 2k – 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k – 12k Hz
- Parametric Equalizer (Band 9): 9k – 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
HDMI Section
- Input Format 480p / 720p
General
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
Dimensions
- Din Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
- Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
